Cub Cadet ZT1 54

Videos
Call for Price
Overview

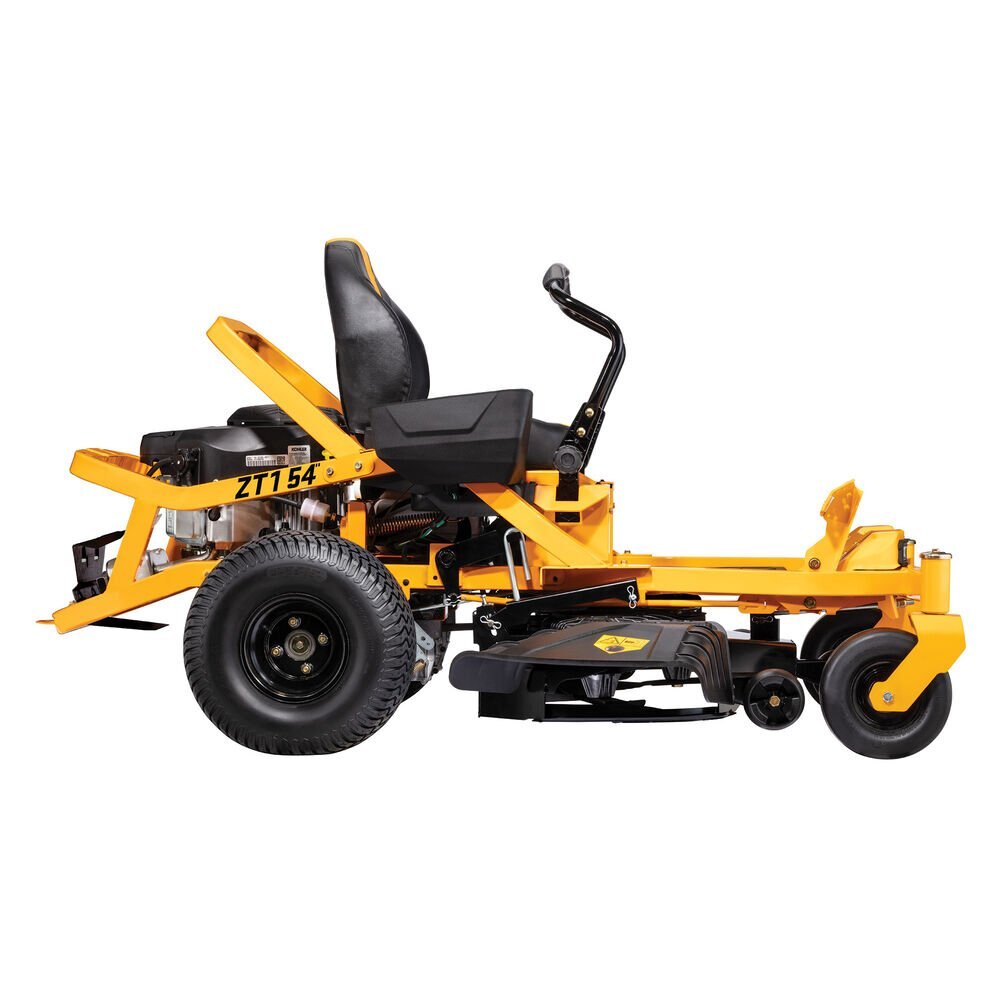

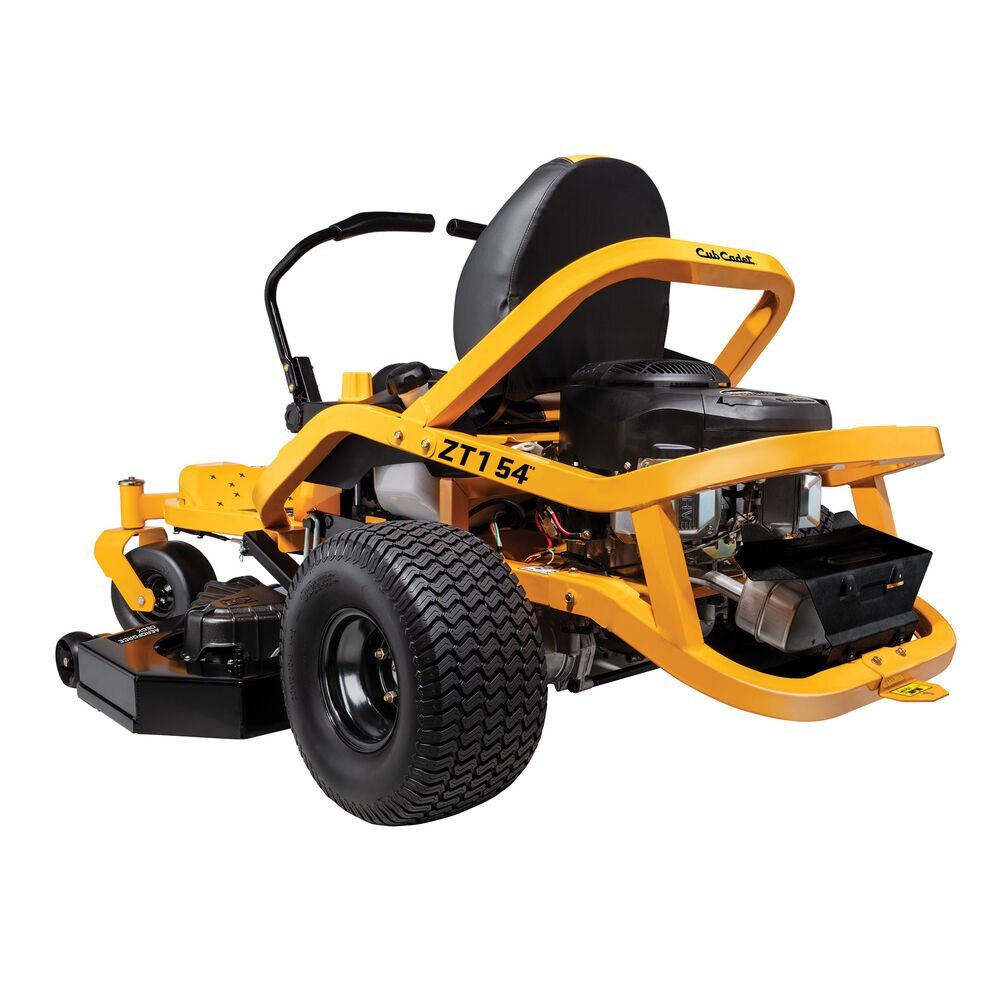

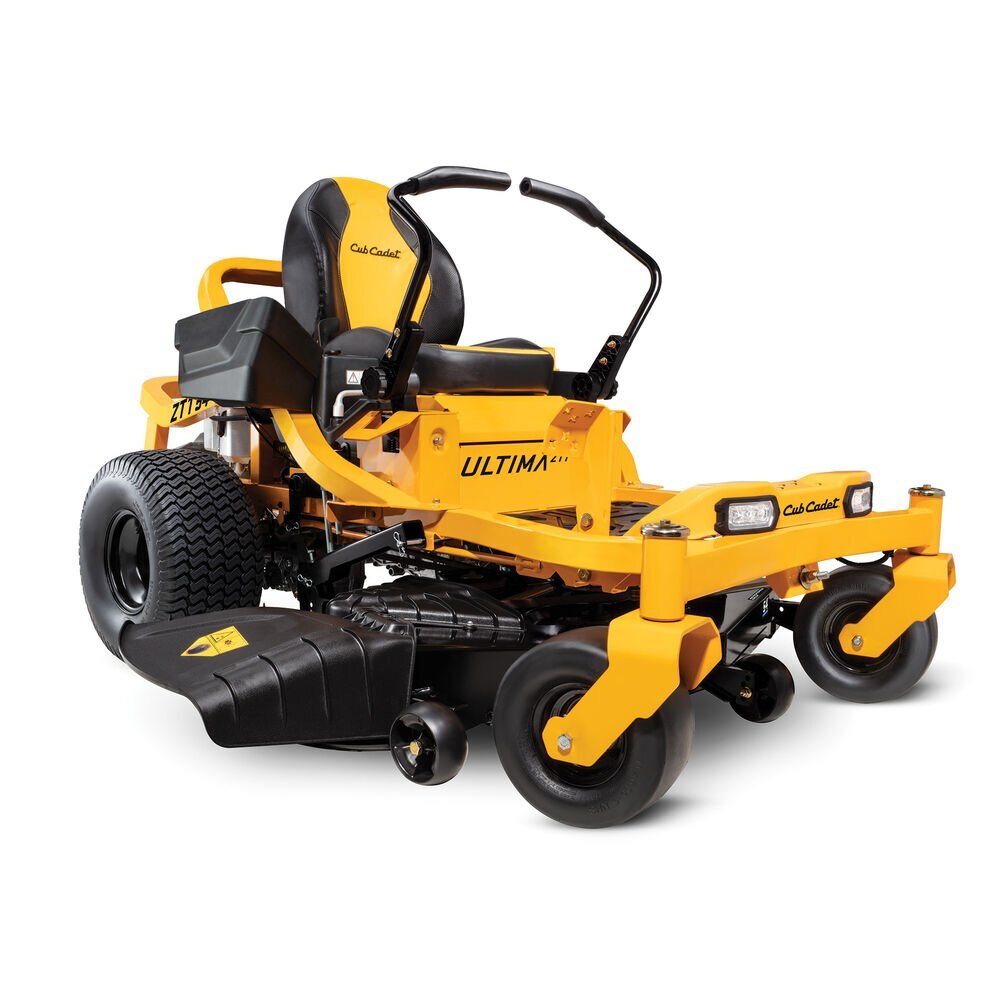

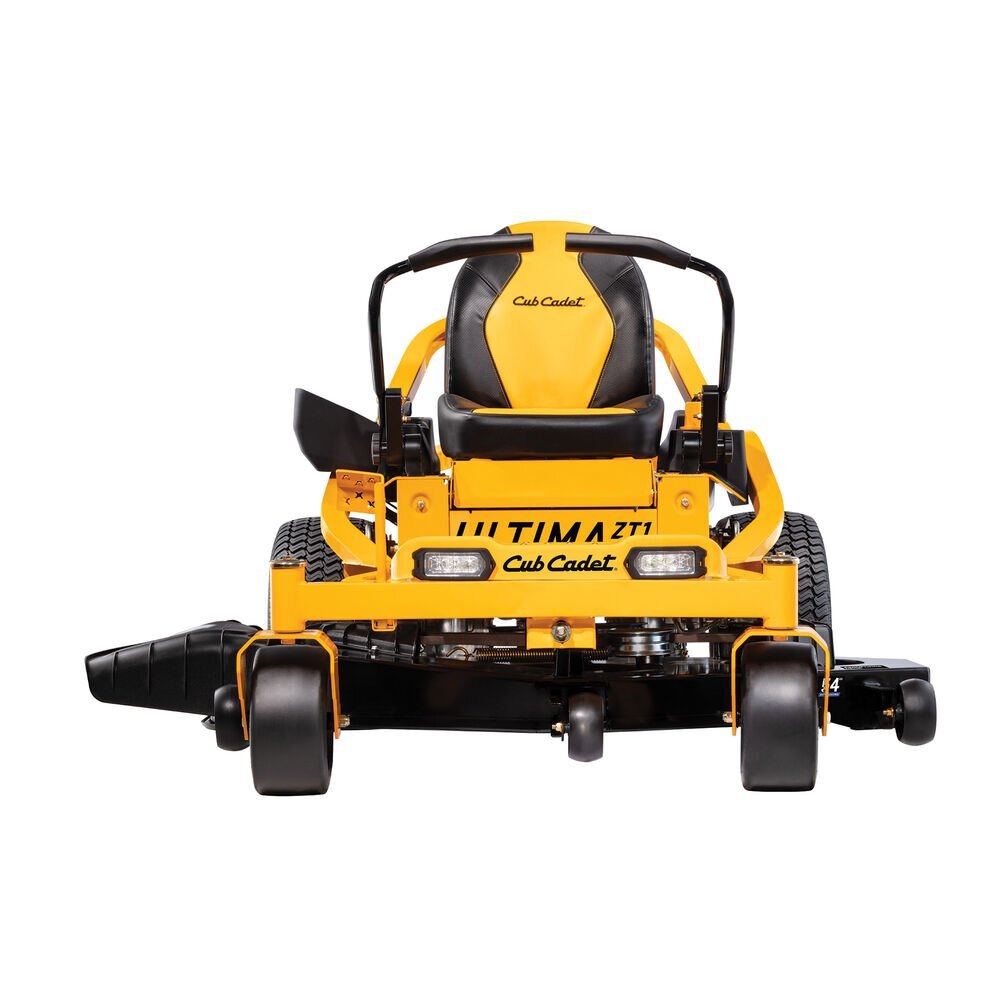

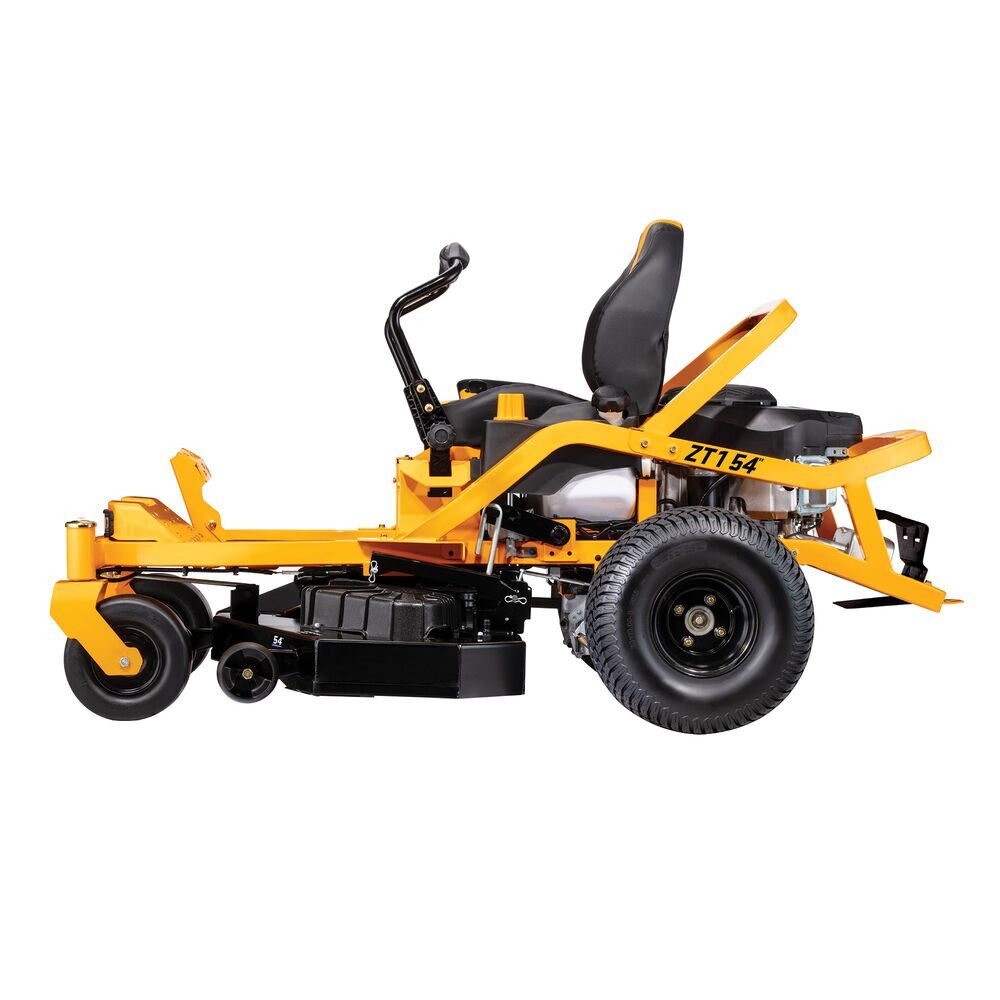

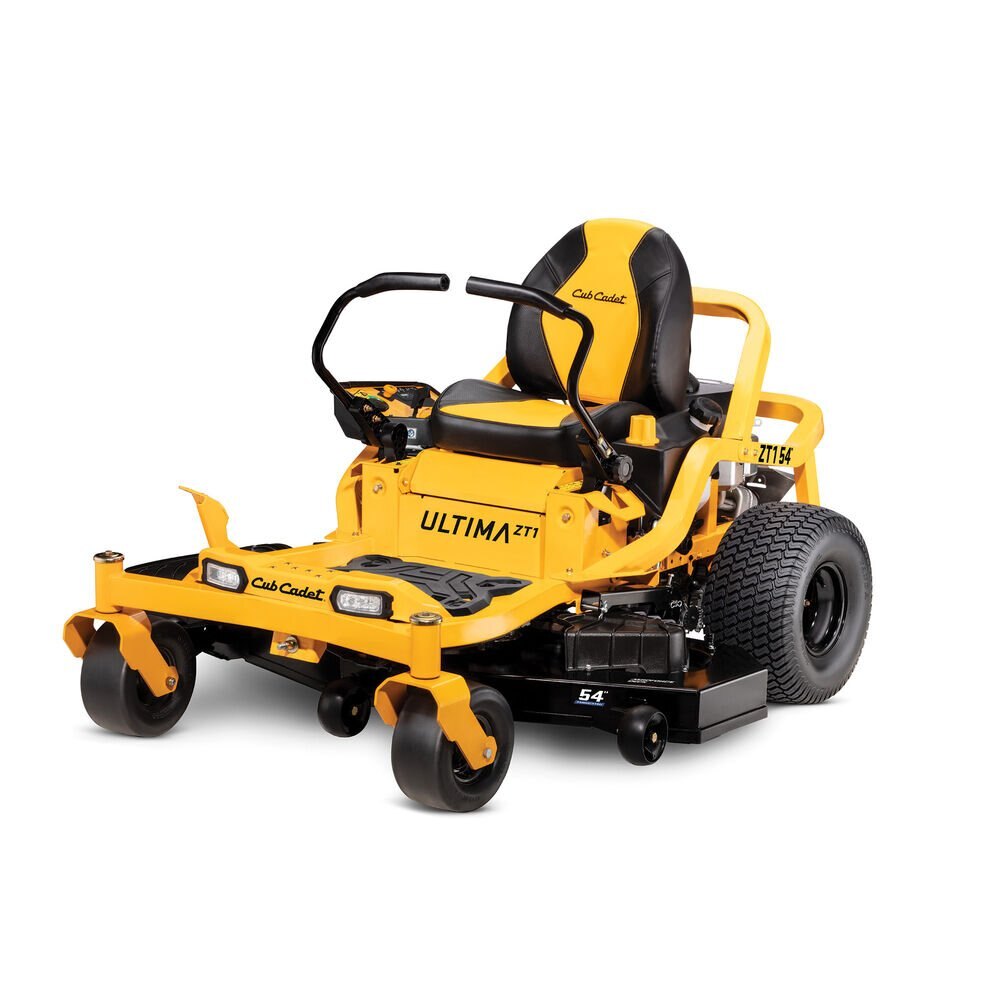

The Cub Cadet® Ultima Series ZT1 54 is a 54-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

  • A 24HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
  • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
  • 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
Specifications
Model
ZT1 54
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Cub Cadet
features

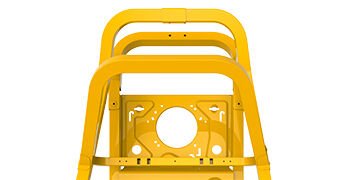

Cub Cadet ZT1 54 Built with Strength

A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear

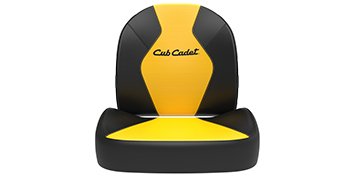

Cub Cadet ZT1 54 Redefining Comfort

Settle into a fully adjustable command center and experience comfort designed to give you speed and control.

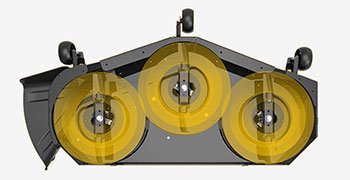

Cub Cadet ZT1 54 AeroForce Deck™

The AeroForce™ fabricated deck is engineered to deliver a premium cut with minimal clumps, fine clips and evenness.

engine
Choke
Separate Choke
Governor
Mechanical
Cylinders
Twin
Air Filter
Dual element
Fuel Gauge
Oil Filter
Lubrication
Fully pressurized
Engine Brand
Kohler®
Engine Model
7000 Series
Engine Start
Ignition Key
Starter Type
Electric
Engine Output
24HP
Fuel Delivery
Carburetor
Charging System
12 amp regulated
Fuel Tank Capacity
3.5 gal. US (13.25 L)
Engine Displacement
747cc
Engine Model Number
KT724
Engine Oil Capacity
2.0 qt. US (1.89 L)
battery
Battery
210 CCA
Battery Type
AGM (Absorbent Glass Mat)
Battery Voltage
12V
drive system
Drive System
Hydrostatic
Transmission
Hydro-Gear EZT 2200
Forward Speed
7 MPH / 11.3 km/h
Reverse Speed
3.5 MPH / 5.6 km/h
cutting deck
Blade(s)
Three
Deck Lift
Foot pedal with Dial Adjust
Deck Wash
Anti-Scalping
Three gauge wheels
Deck Material
11-gauge steel
Deck Positions
15
Deck Construction
Fabricated
Deck Cutting Width
54 in
Cutting Height Range
1'' - 4.5''
Deck Engagement (PTO)
Electric
chassis
ROPS
Frame
2'' x 2'' tubular steel
Rear Tow Hitch
Turning Radius
Front Caster Yokes
1/4" Steel
Corrosion Protection
controls
Brakes
Disc
Cruise Control
Steering Control
Lap Bars
comfort
Armrests
Seat Type
20" high back
Seat Adjustment
Knob
Front Caster Suspension
wheels
Rear Tires
20''x 10''- 8''
Tire Tread
Turf Master / Multi Trac
Front Tires
11"x 6"-5"
specifications
Series
Ultima Series™ ZT
additional specifications
Mulch Kit
Available separately
Cup Holder
Hour Meter
Available Separately
Headlight(s)
Dual-LED
Model Number
17AREACM010
Parking Brake
Lap Bar Integrated
Operator Presence System
warranty
Warranty
3-year unlimited hours
Frame Warranty
Lifetime Limited
Commercial Warranty
Deck Shell Warranty
Lifetime Limited
disclaimers
Horsepower
As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
