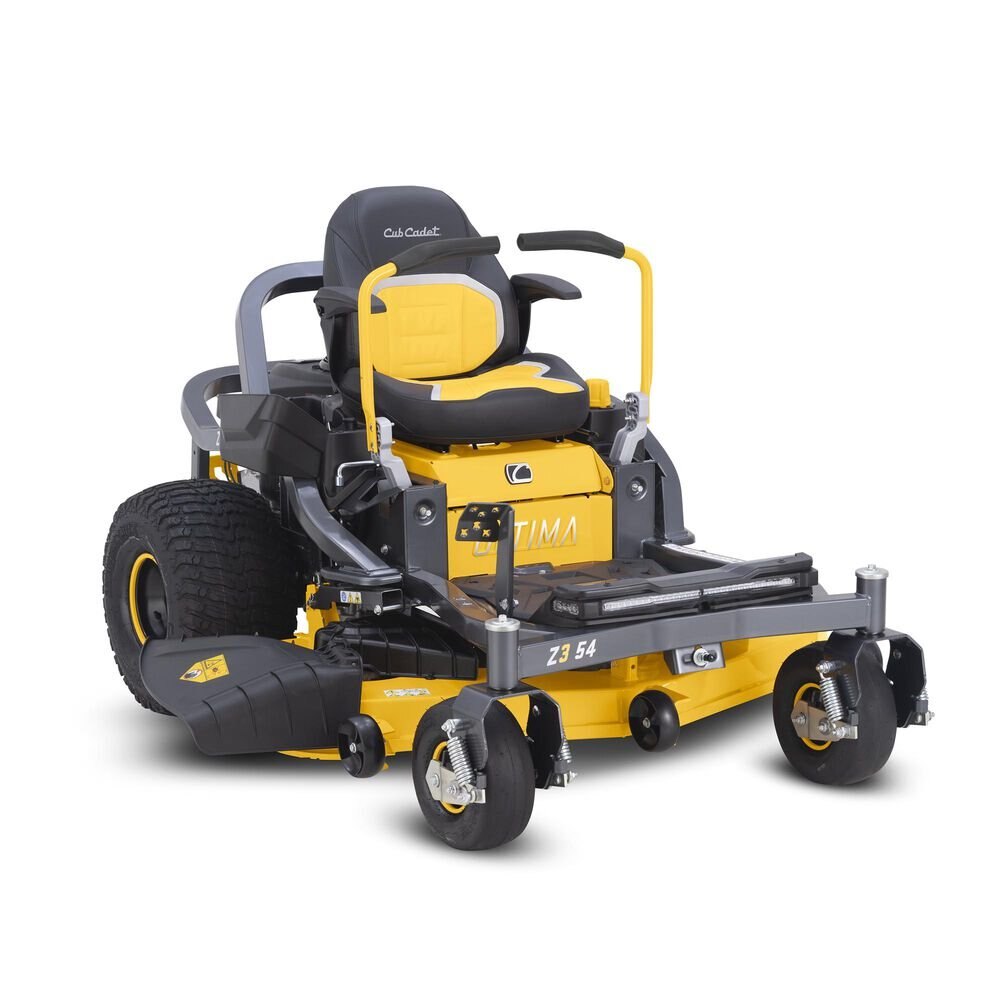

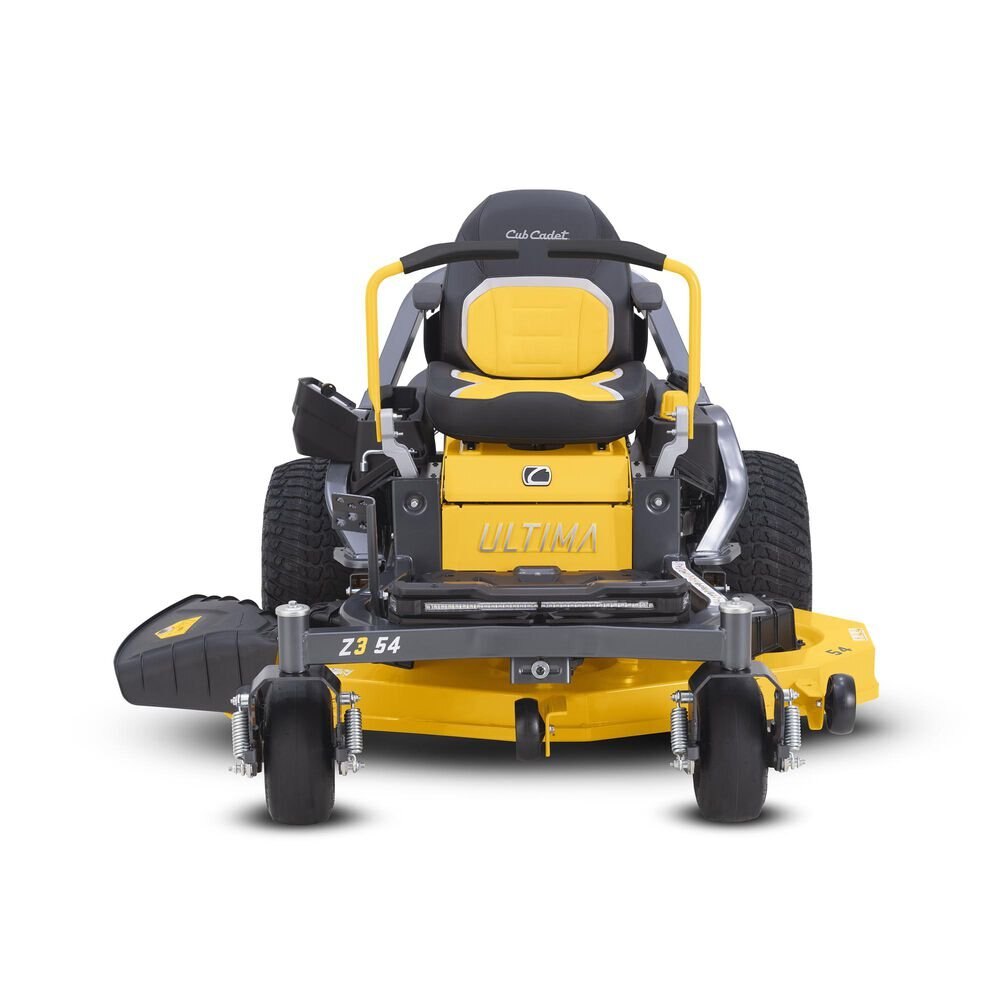

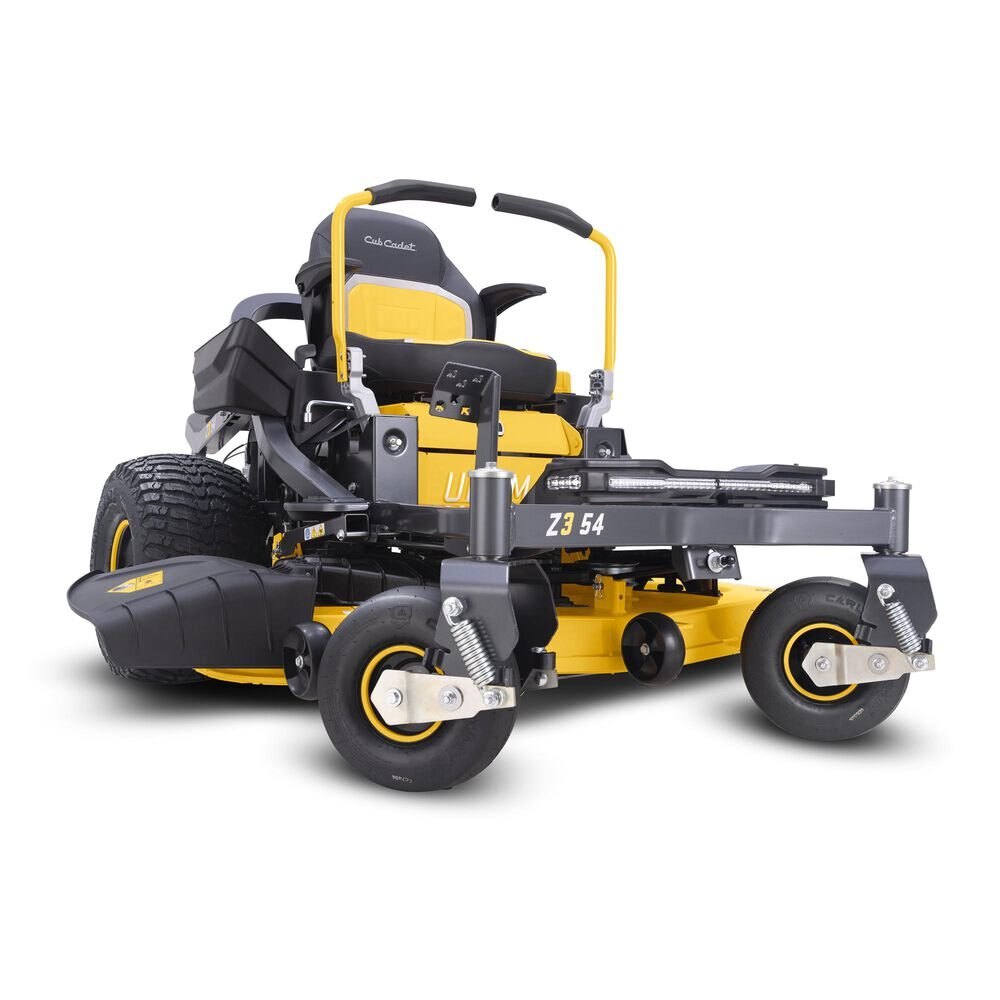

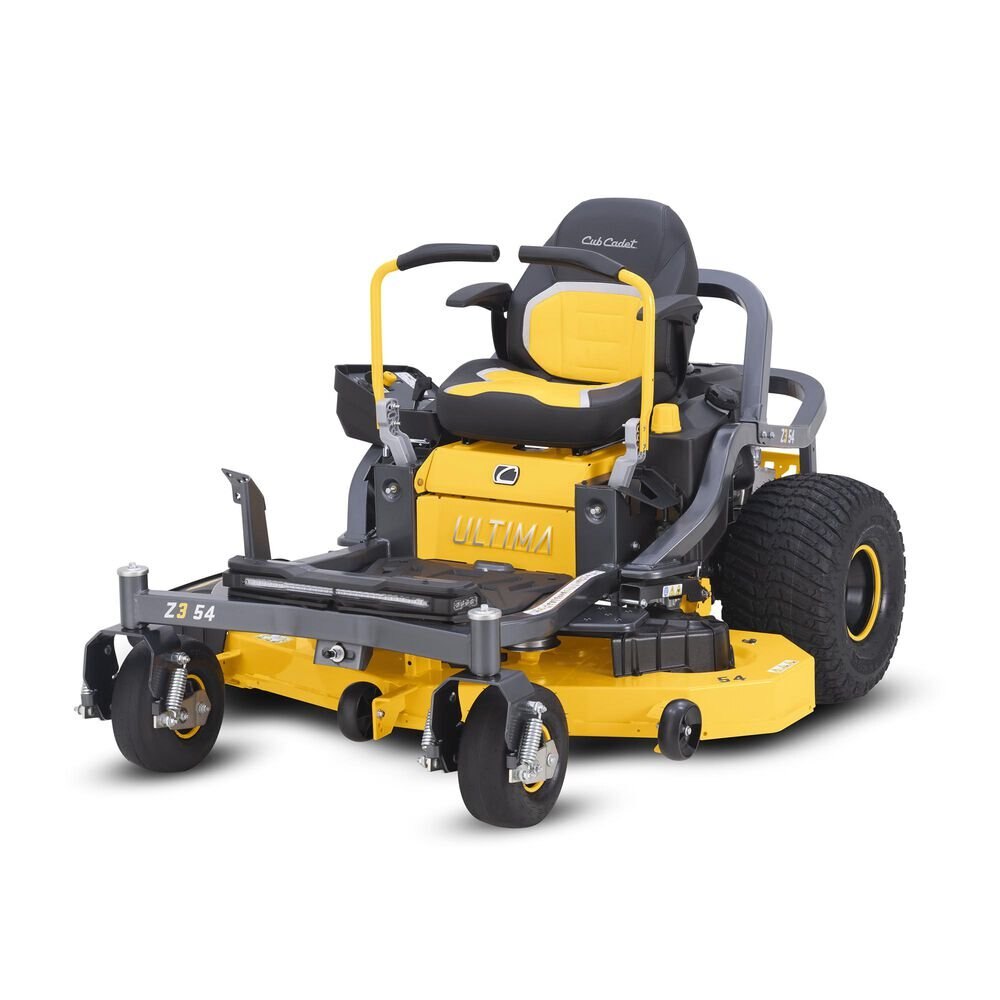

Cub Cadet Z3 54

  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Cub Cadet Z3 54
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 54 54-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers the uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**.

  • The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
  • Dual hydrostatic Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finishallow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
  • A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.

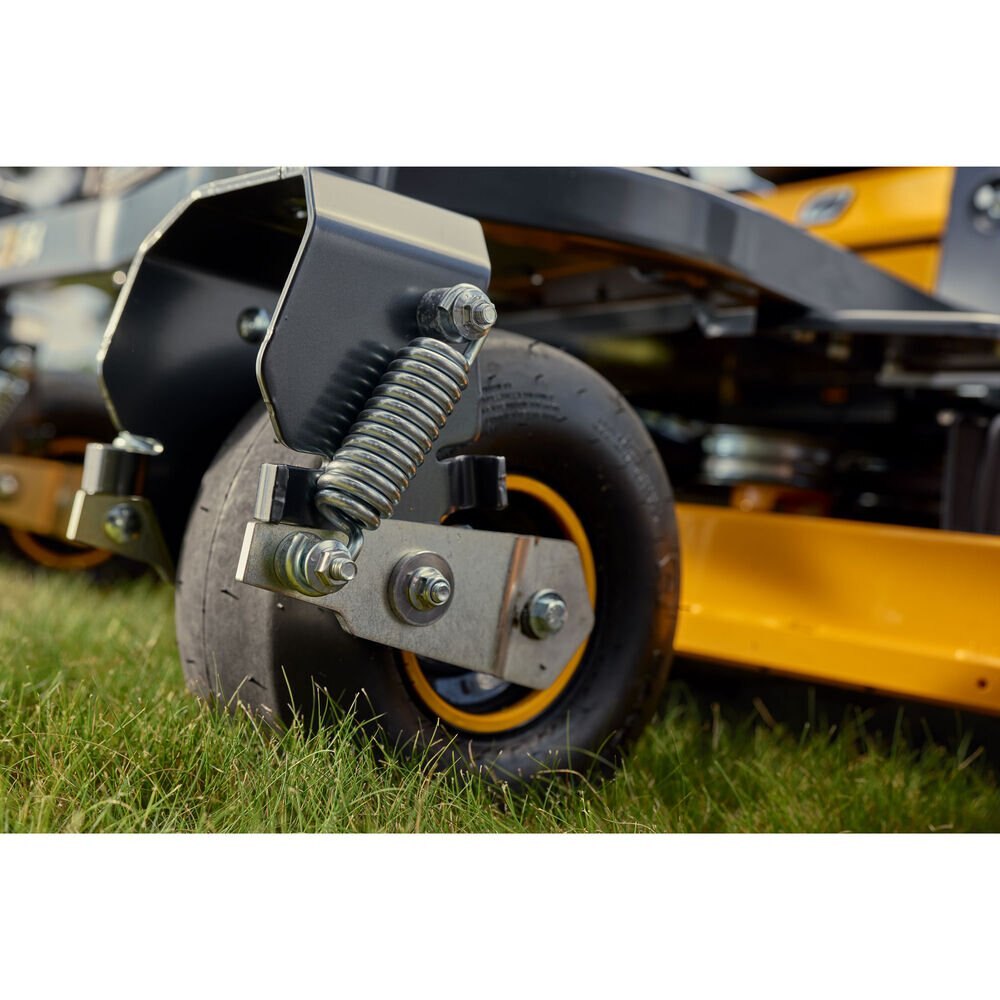

  • Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*
Specifications
Model
Z3 54
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Cub Cadet
engine
Choke
Separate Choke
Governor
Mechanical
Cylinders
Twin
Air Filter
Single element
Fuel Gauge
Oil Filter
Lubrication
Fully pressurized
Engine Brand
Kawasaki®
Engine Model
FR Series
Engine Start
Ignition Key
Starter Type
Electric
Engine Output
24HP
Fuel Delivery
Carburetor
Charging System
15 amp regulated
Fuel Tank Capacity
3.5 gal. US (13.25 L)
Engine Displacement
726cc
Engine Model Number
730V
Engine Oil Capacity
2.1 qt US ( 2 L)
battery
Battery
230 CCA
Battery Type
Lead Acid
Battery Voltage
12V
drive system
Drive System
Hydrostatic
Transmission
Tuff Torq TZ 350
Forward Speed
7.5 MPH /12.0 km/h
Reverse Speed
3.5 MPH / 5.6 km/h
cutting deck
Blade(s)
Three
Deck Lift
Foot pedal with Dial Adjust
Deck Wash
Anti-Scalping
Three gauge wheels
Deck Material
11-gauge steel
Deck Positions
15
Deck Construction
Reinforced Fabricated
Deck Cutting Width
54 in
Cutting Height Range
1'' - 4.5''
Deck Engagement (PTO)
Electric
chassis
ROPS
Frame
2'' x 2'' tubular steel
Rear Tow Hitch
Turning Radius
0°
Front Caster Yokes
5/16" Steel
Corrosion Protection
controls
Brakes
Disc
Cruise Control
Handle Grip(s)
Ergonomic Overmolded Soft Touch
Steering Control
Lap Bars
comfort
Armrests
Seat Type
20" Cut-and-Sew with Head Bolster
Seat Adjustment
Lever
Front Caster Suspension
wheels
Rear Tires
20"x 12"-8"
Tire Tread
Turf Armor
Front Tires
13"x 6.5"-6"
specifications
Series
Ultima Series™ Z
additional specifications
Mulch Kit
Available separately
Cup Holder
Hour Meter

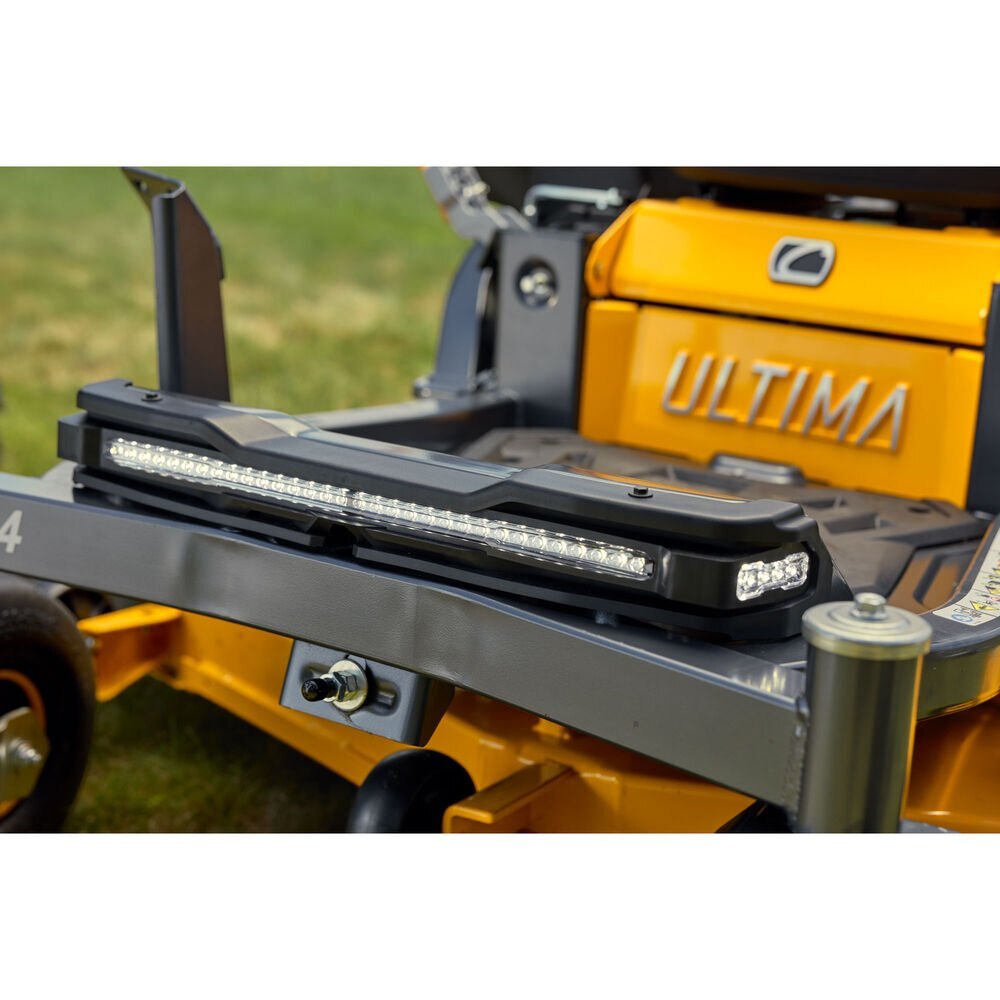

Headlight(s)
LED Lightbar with Side Lights
Model Number
17RIECE3010
Parking Brake
Lap Bar Integrated
Operator Presence System
warranty
Frame Warranty
Lifetime Limited
Commercial Warranty
Deck Shell Warranty
Lifetime Limited
Residential Warranty
3-year unlimited hours
disclaimers
Efficiency
**Mowing identical grass conditions using a 42-inch Ultima Series zero-turn mower at a speed of 7 MPH vs. a Cub Cadet® 42-inch lawn tractor at a speed of 5 MPH.
Horsepower
As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
LED Lightbar With Side Lights
Front LED light bar with side lights vs. Cub Cadet® Classic Twin LED Front Headlights 625-05041, measured in total lumens.
