Cub Cadet PRO X 434

  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
  • Cub Cadet PRO X 434
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

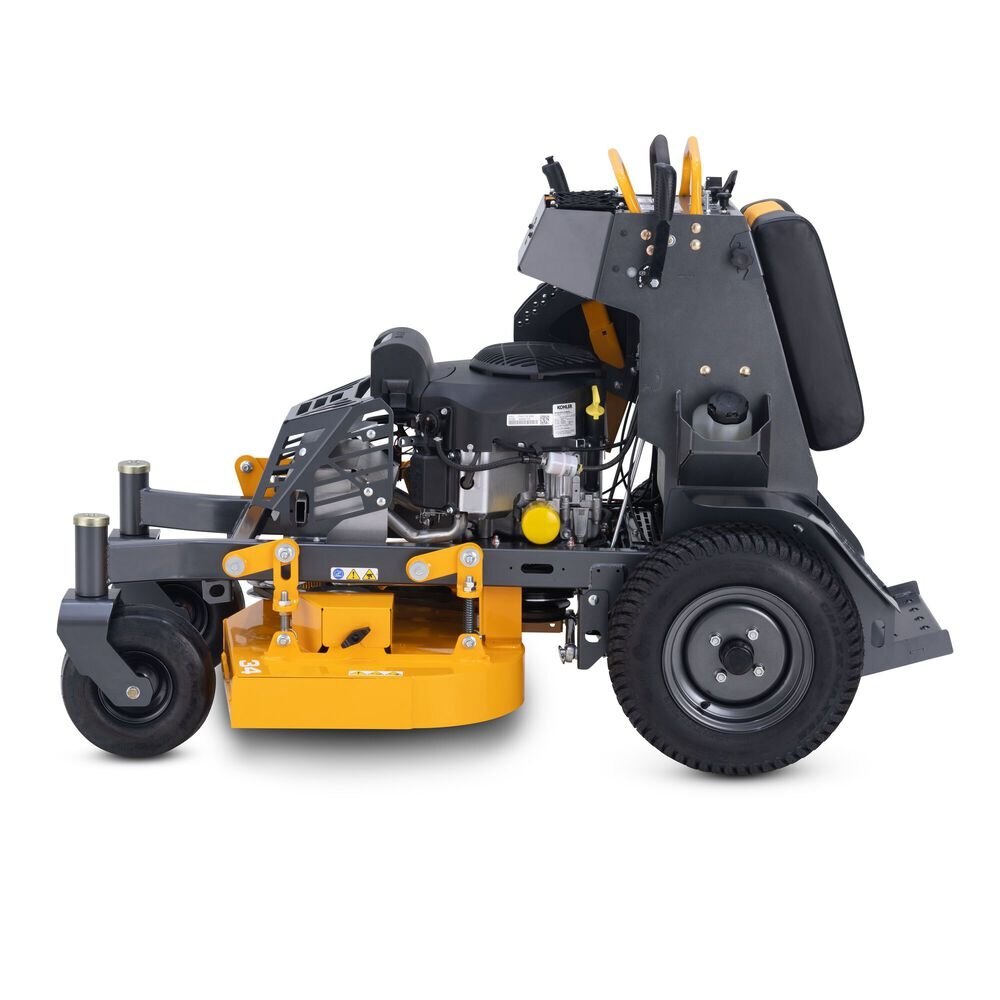

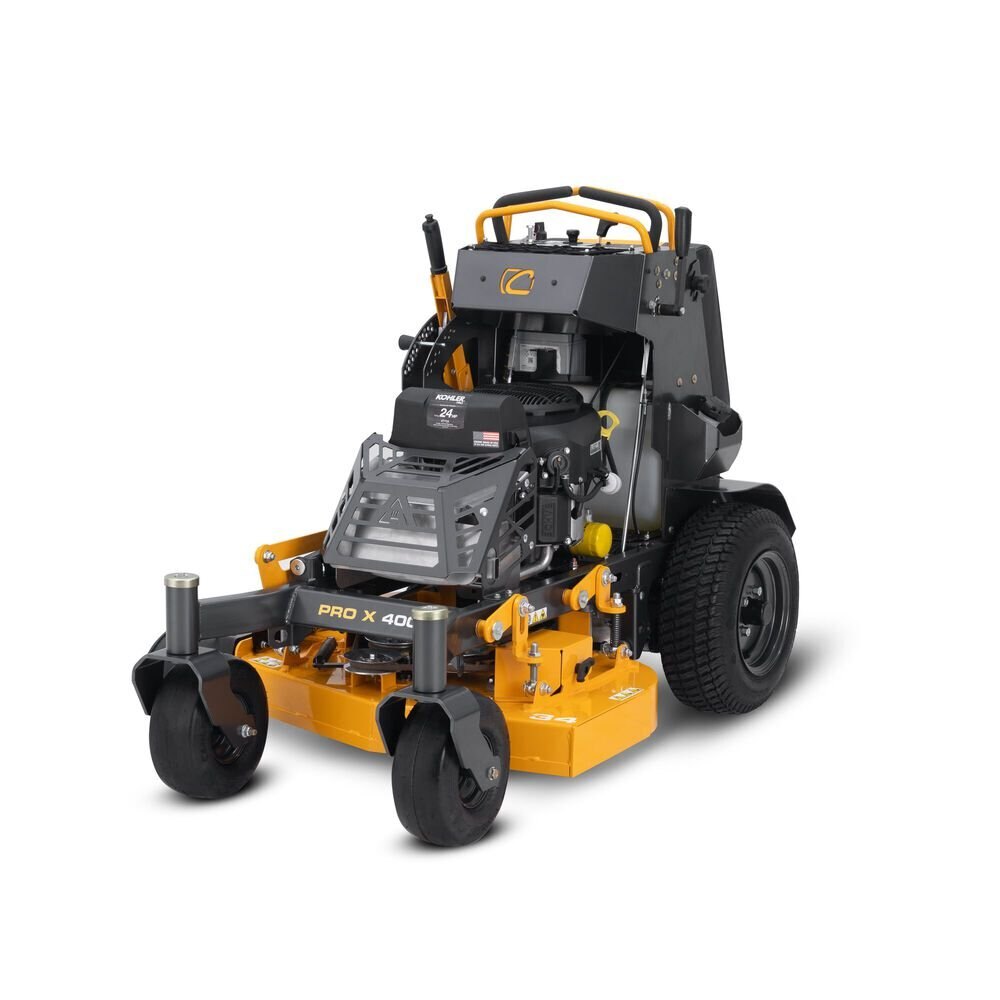

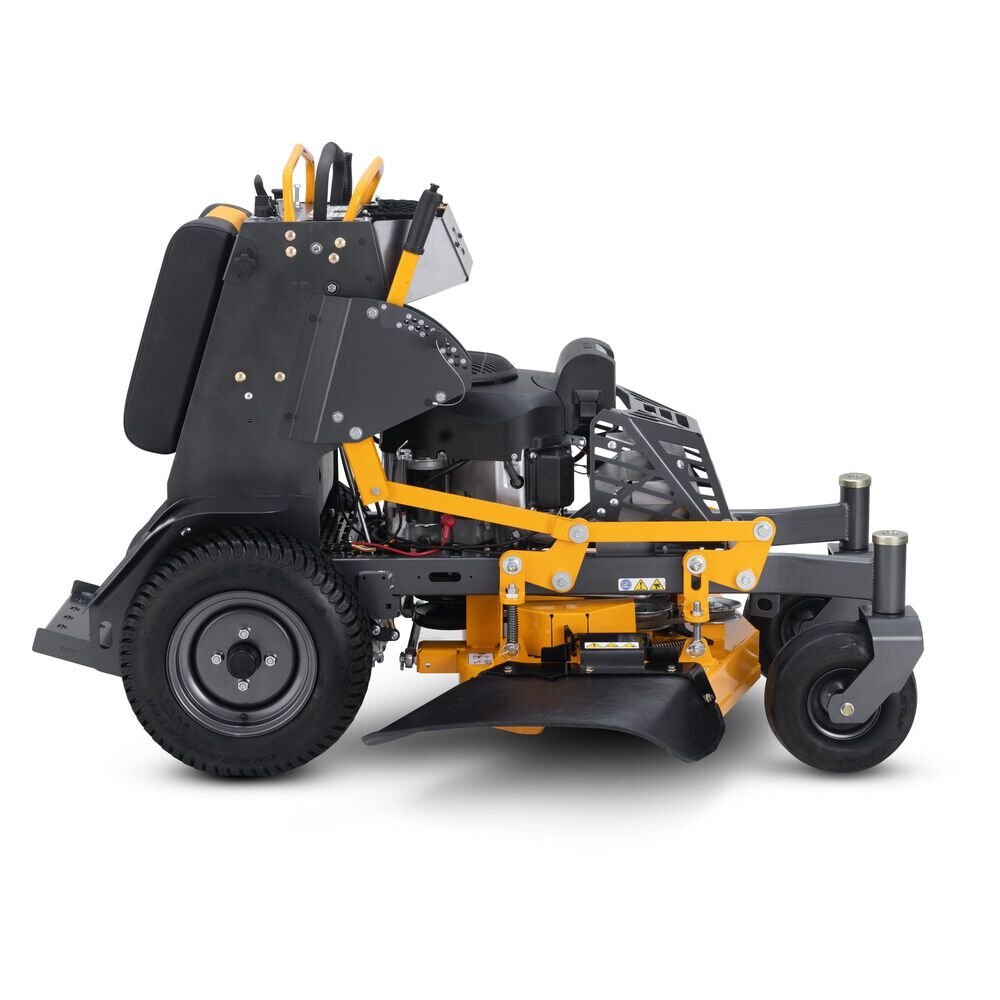

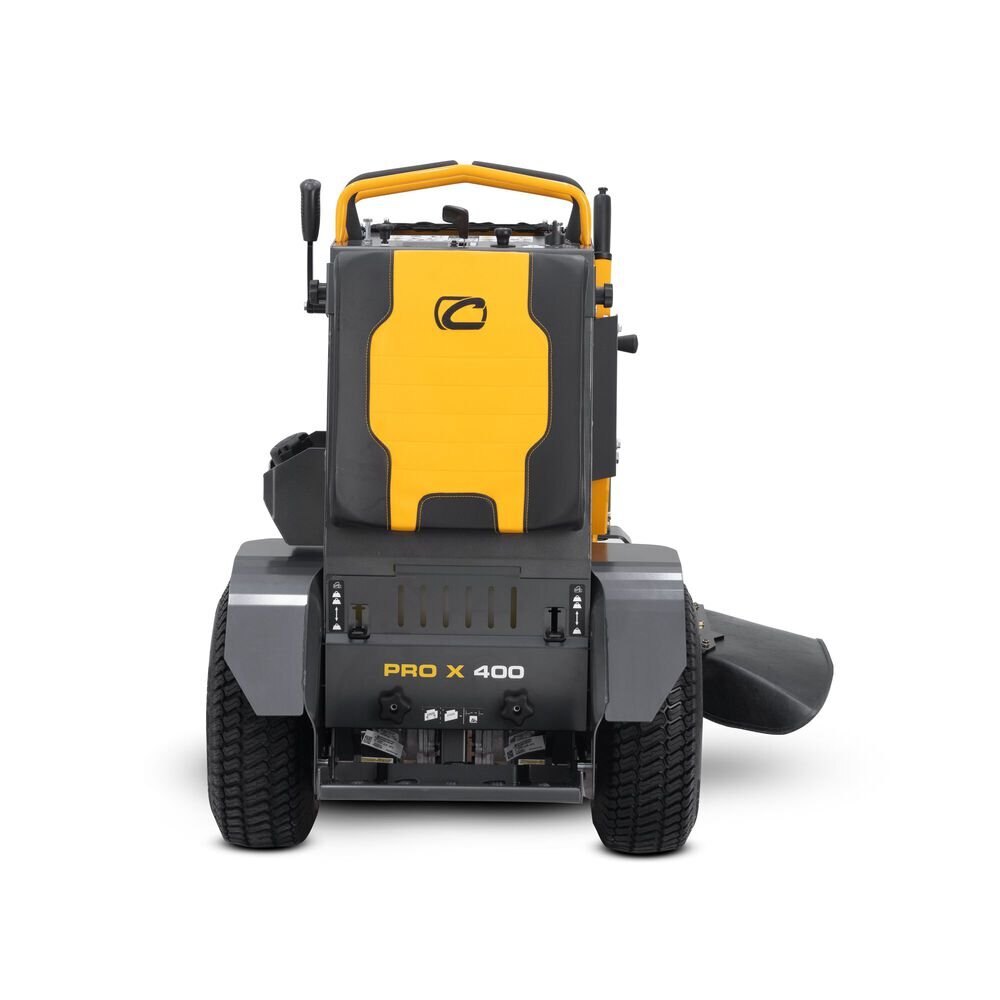

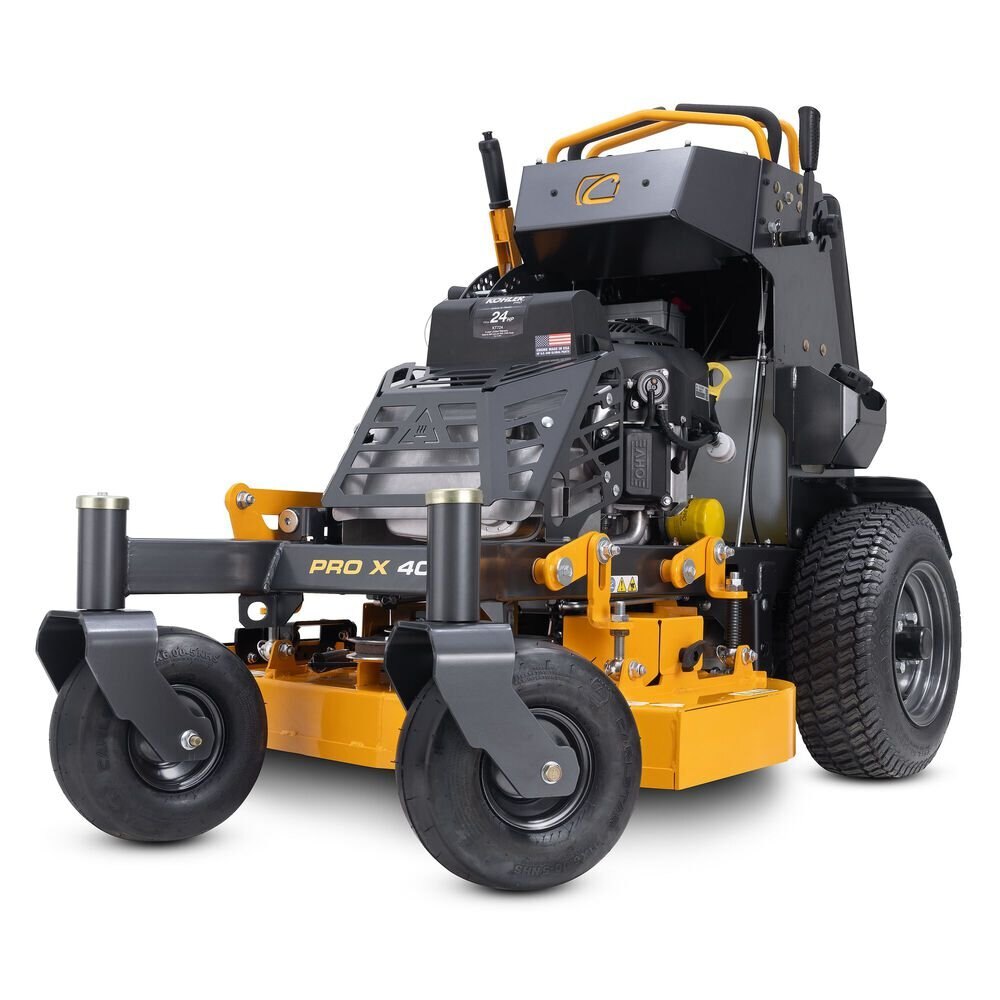

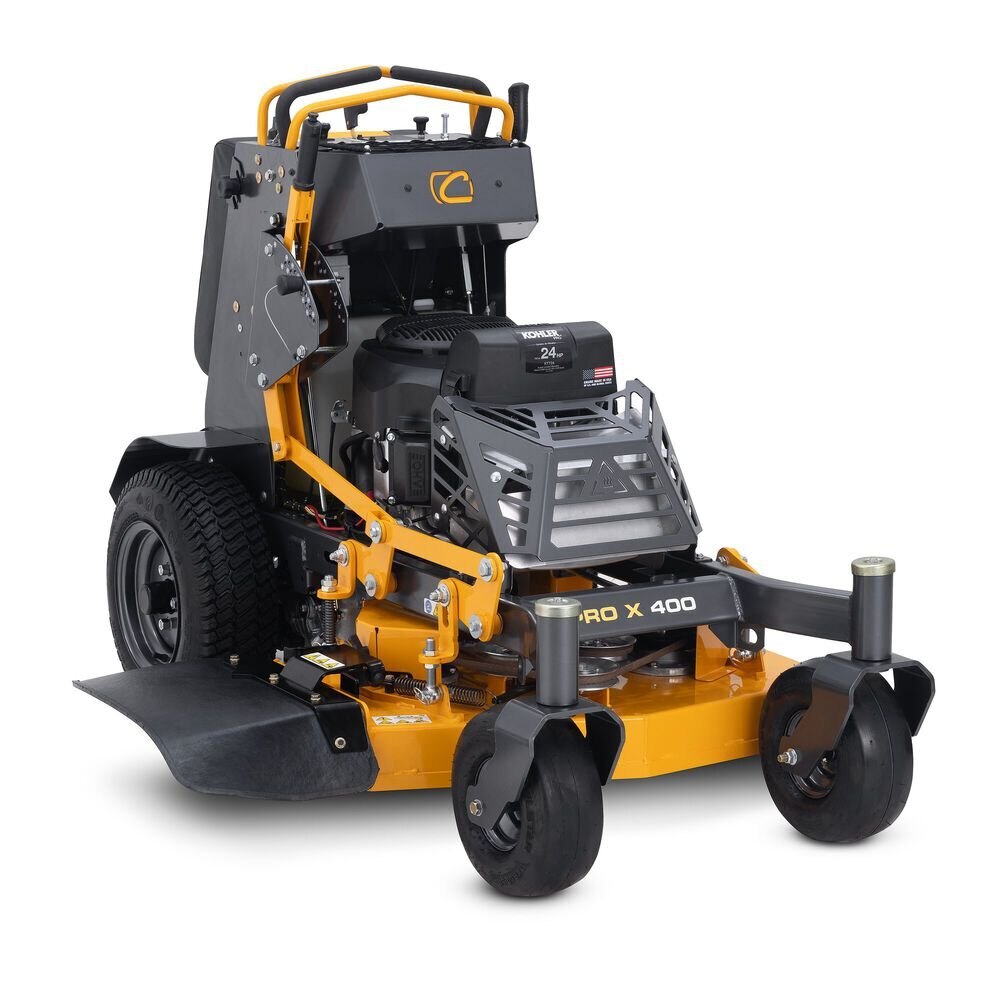

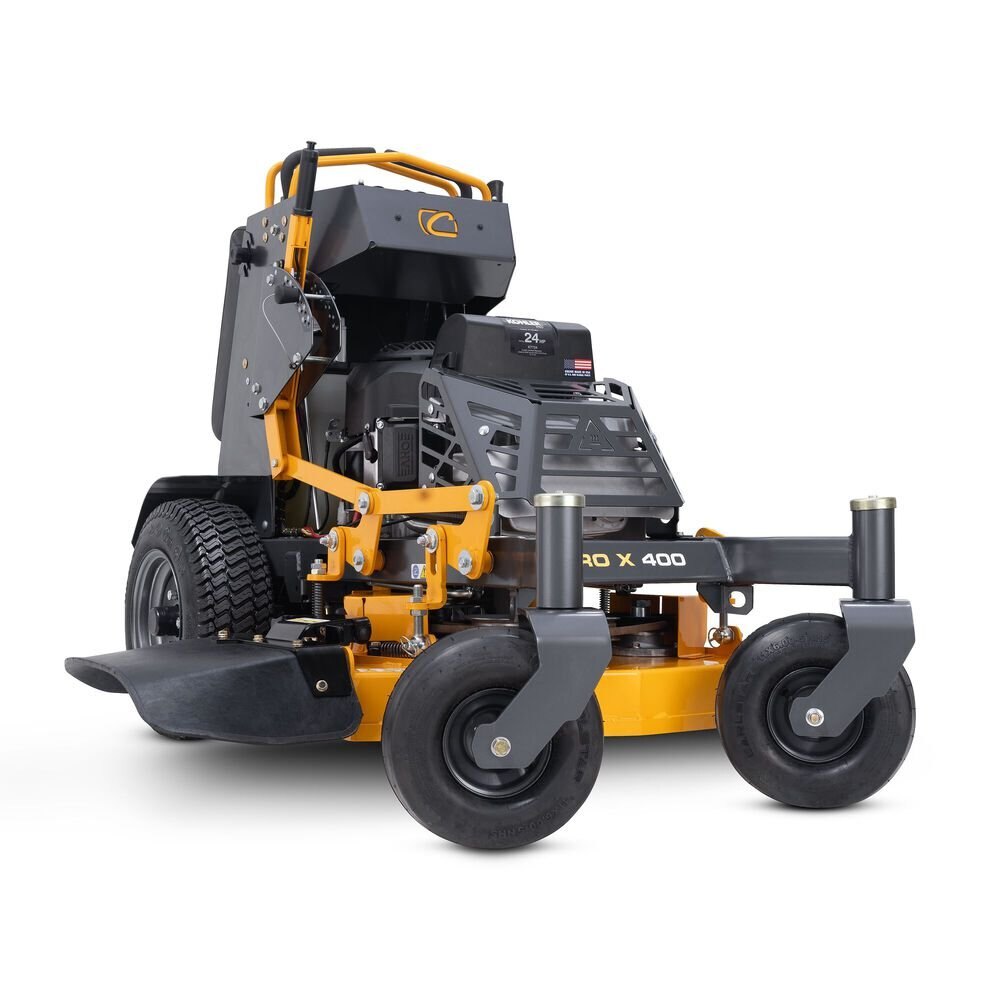

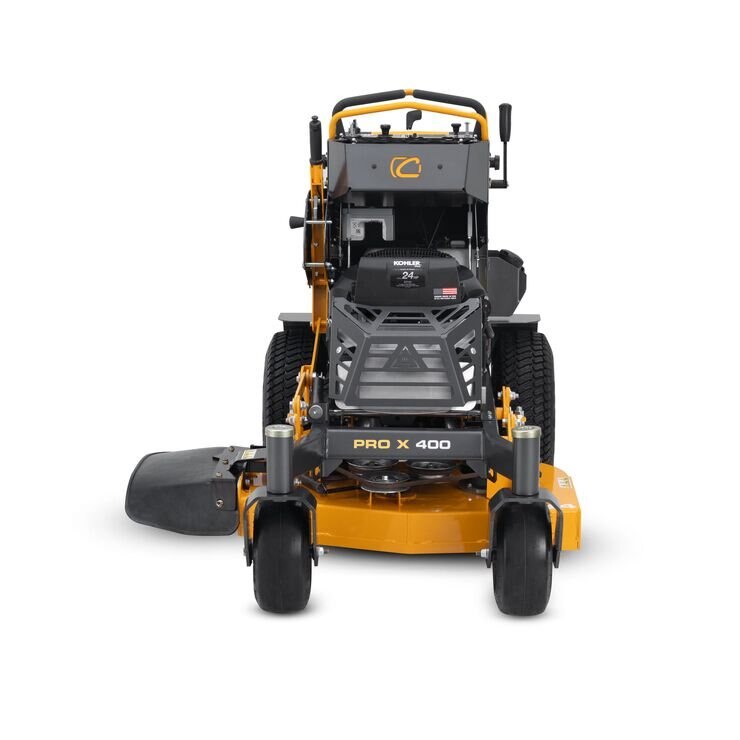

Stand up to tough terrain with the Cub Cadet® PRO X 434 34-in. 24HP* Commercial Stand-On Lawn Mower featuring a commercial-grade 24HP* Kohler® KT-PRO (747cc) engine. Maneuver through gates and tight spaces with a fully fabricated 34-inch 10-gauge steel commercial deck with 7-gauge bottom reinforcement. Power past obstacles and uneven terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability. Backed by a 4-year limited, 800-hour warranty and a nationwide network of Cub Cadet Dealers.

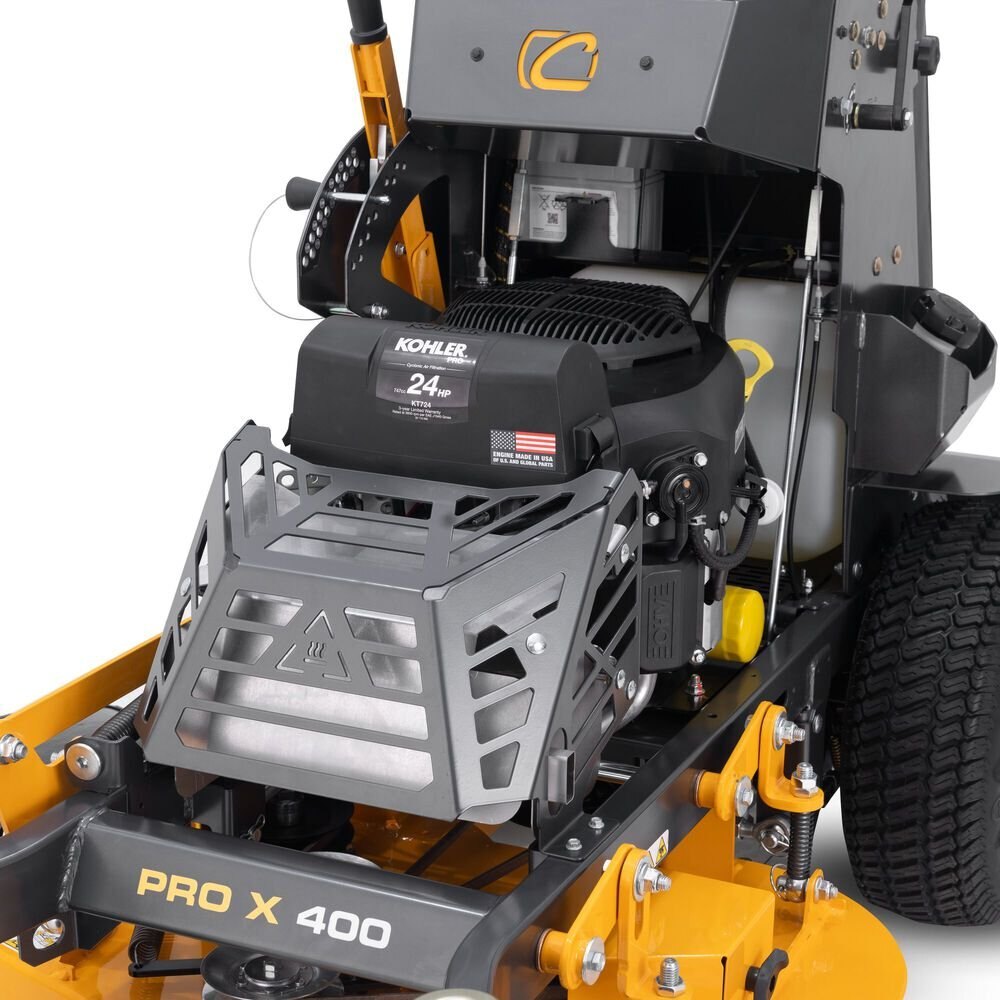

  • Powered by a commercial-grade 24 HP* Kohler® KT-PRO (747cc) engine

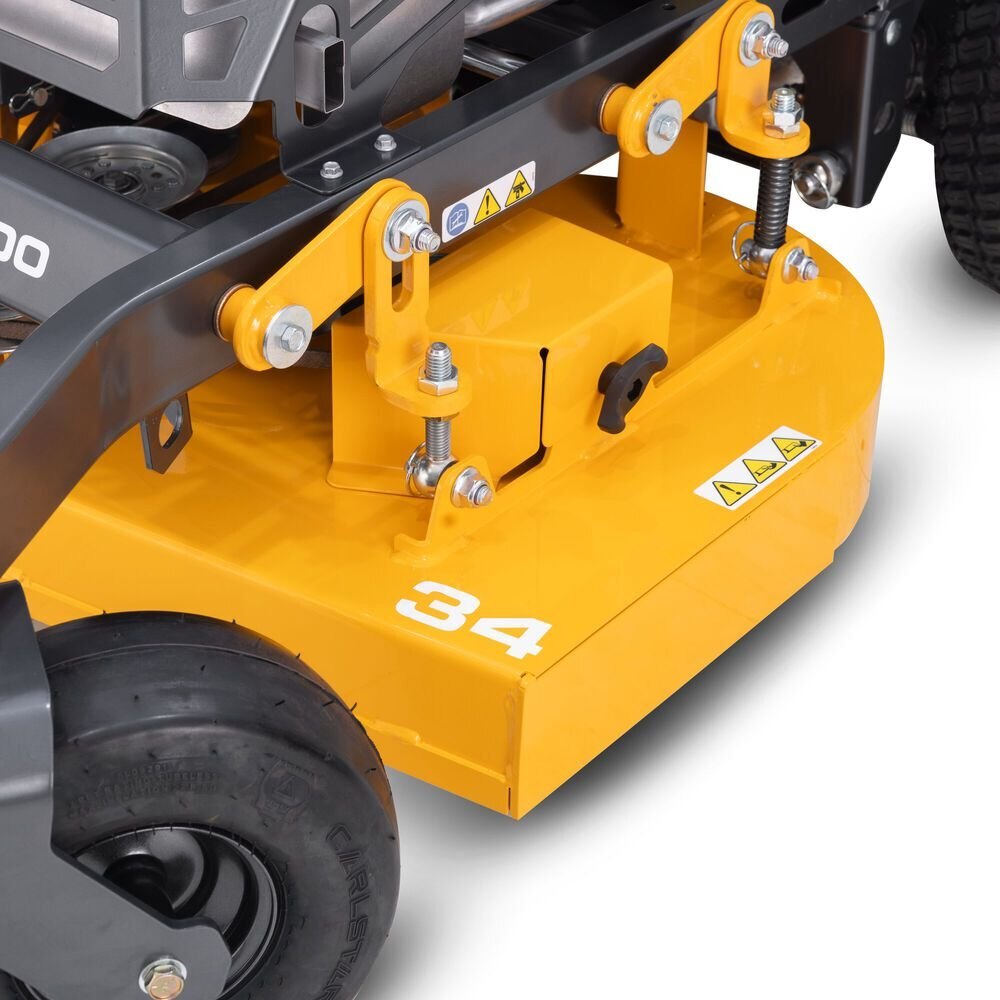

  • Maneuver through gates and other tight spots with a fully fabricated 34-in. 10-gauge steel commercial deck with 7-gauge bottom reinforcement.
  • Adjust tension and glide comfortably through uneven terrain thanks to a large, fully adjustable suspension platform.
  • High performance commercial Hydro-Gear® ZT-3100 transmission delivers quick response to the drive wheels and smooth control for cutting up to 7mph.
  • Stand up to rough terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability
Specifications
Model
PRO X 434
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Cub Cadet
engine
Choke
Separate Choke
Cylinders
Twin
Air Filter
High Density
Fuel Gauge
Oil Filter
Lubrication
Fully pressurized
Engine Brand
Kohler®
Engine Model
7000 Series PRO
Engine Start
Ignition Key
Starter Type
Electronic
Engine Output
24HP
Fuel Delivery
Carburetor
Charging System
12 amp regulated
Fuel Tank Capacity
4 gal. US (15.1 L)
Engine Displacement
747cc
Engine Model Number
KT724
Engine Oil Capacity
2.0 qt. US (1.89 L)
drive system
Transmission
Hydro Gear 3100
Forward Speed
7.0 mph / 11.2 km/h
Reverse Speed
3.5 mph / 5.6 km/h
cutting deck
Deck Lift
Hand lever adjusting spring lift, pin selector for height
Deck Construction
10 ga shell w/ 7 ga top & bottom reinforcement
Deck Cutting Width
34 in
Cutting Height Range
1.5"- 4.5"
Spindle Construction
5” sealed cast aluminum housing (maintenance-free)
Deck Engagement (PTO)
Electric
chassis
Frame
1.5" x 3" full-length tube frame
Front Axle
1.5" x 3" tube construction
Suspension
None
Front Caster Mount
3/8" thick steel
controls
Brakes
Hand Lever actuated scrub brake
Steering Control
Lap Bar Steering Control
wheels

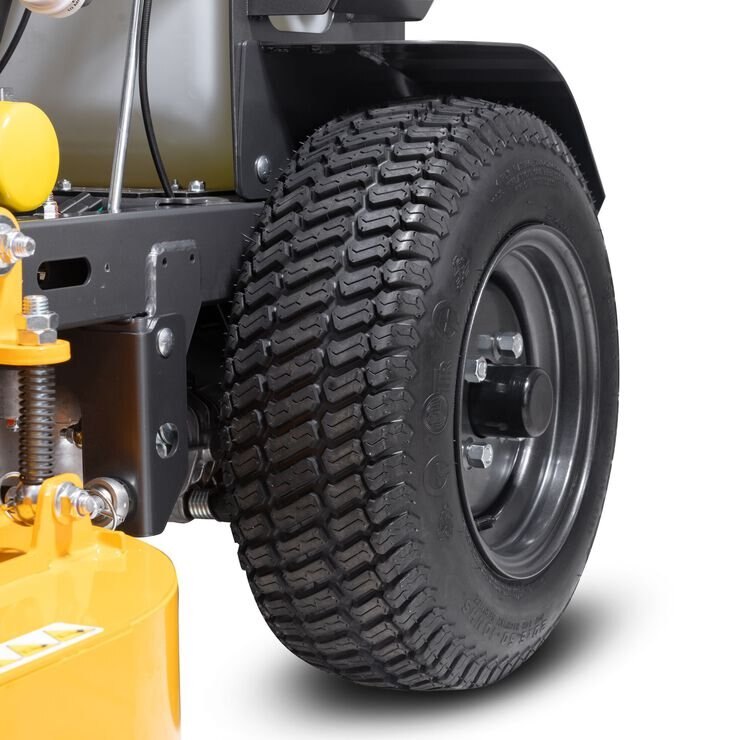

Rear Tires
20"x 6.5"-10"
Front Tires
11" x 6.0"-5"
additional specifications
Hour Meter
Crew Boss
Model Number
47RS7WN4A10
warranty
Commercial Warranty
4-year / 800-hour
disclaimers
Horsepower
*As required by Kohler, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
