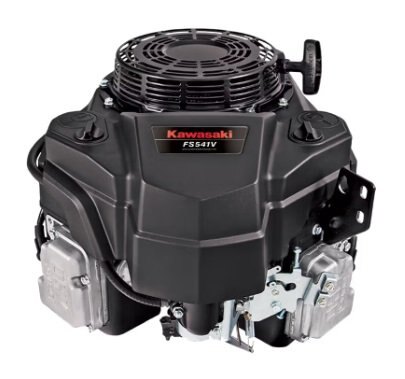

Kawasaki FS541V

  • Kawasaki FS541V
  • Kawasaki FS541V
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

FS541V

The perfect companion for ZTR, wide-area walk-behind mower, and lawn-tractor applications, the Kawasaki FS541V engine is a specialist when it comes to heavy-duty lawn-care needs. A 90° V-twin engine provides you with power via high-performance pressurized lubrication and an internally vented carburetor. Plus, additional features like cast-iron cylinders and integrated clean-out ports contribute to durability and efficiency, respectively.
Specifications
Model
FS541V
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kawasaki
Displacement
603 cc (36.8 cu. in.)
Bore X Stroke
2.9 x 2.8 in. (73 x 72mm)

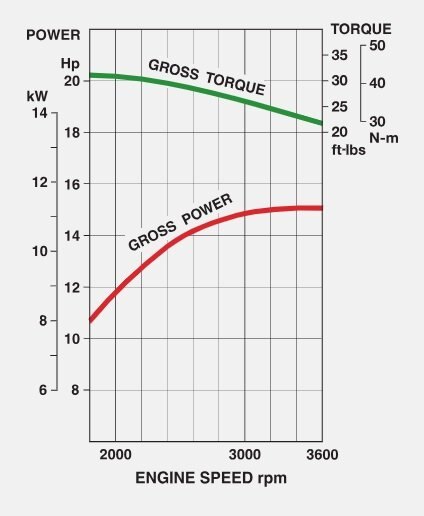

Maximum Power
15.0 hp (11.2 kW) at 3,600 RPM
Maximum Torque
31.0 ft-lbs (42.0 N·m) at 1,800 RPM
Compression Ratio
8.1:1
Number Of Cylinders
2
Oil Capacity W/filter
1.8 U.S. qt (1.7 liters)
Dry Weight (without Muffler)
80.9 lbs (36.7 kg)
features
  • Overhead V-valve
  • Integrated clean out ports
  • 90° V-twin
  • Pressurized lubrication system
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass chopper screen
  • Dual element air filtration system with reinforced primary filter
  • Cast-iron cylinder liners
literature

Name

Link
PDF MANUAL Download
TEST DATA PDF Download
