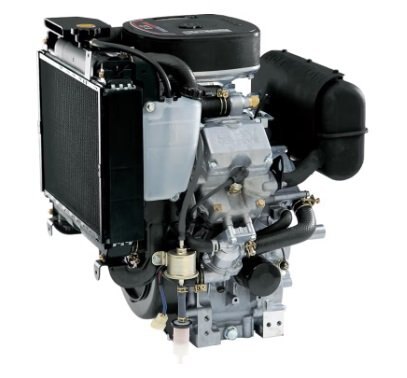

Kawasaki FD750D

  • Kawasaki FD750D
  • Kawasaki FD750D
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

FD750D

For lawn tractors, scissor lifts, trenchers, and trash pumps, the FD750D offers the ideal amount of muscle needed to get the job done right. Delivering dependable power via a precision-engineered, liquid-cooled horizontal-shaft OHV V-twin system, this Kawasaki engine steps up when the work calls for it most.
Specifications
Model
FD750D
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kawasaki
Displacement
745 cc (45.5 cu. in.)
Bore X Stroke
3.07 x 3.07 in. (78 x 78mm)
Maximum Power
25.0 hp (18.7 kW) at 3,600 RPM
Maximum Torque
41.0 ft-lbs (55.5 N·m) at 2,600 RPM
Compression Ratio
8.6:1
Number Of Cylinders
2
Oil Capacity W/filter
2.1 U.S. qt (2.0 liters)
Dry Weight (without Muffler)
122.0 lbs (55.3 kg)
features
  • Overhead v-valve
  • Liquid-cooled
  • 90° V-twin
  • Magneto spark ignition
  • Multi-position, dual element air cleaner
  • Twin barrel carburetor with fuel shut-off solenoid
  • Oil pressure switch
