Walk Behind Mowers Exmark Turf Tracer X Series TTX730EKC52400
ID # 40119214

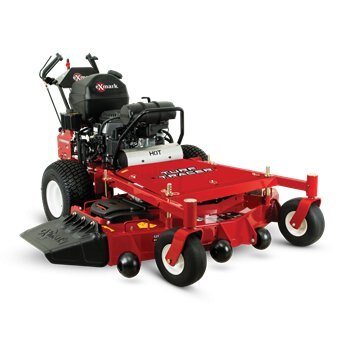

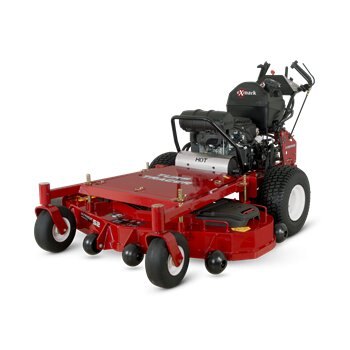

Exmark Turf Tracer X-Series TTX730EKC52400
Overview
By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.
Want to view the rest of our lineup of self-propelled mowers? Check out our full lineup of commercial walk-behind mowers.
Specifications
Model
Turf Tracer X-Series
Category Name
Lawn / Garden
features
Features
Patented Enhanced Control System (ECS)
Recent university tests showed landscape professionals prefer our control system to all others on the market.
Superior Air Filtration
This series comes standard with heavy-duty canister air filtration systems for longer engine life, more efficient performance and simple maintenance.
Superior Cut Quality
UltraCut™ Series 4 deck
Floating Deck
Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.
Clutch Performance
A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life.
Deck Options
With the Turf Tracer X-Series, you can choose up to a 60-inch deck.
equipment
Electrical
12-volt battery with 20-amp alternator.
Drive Tires
18 x 8.5-8, 4-ply Turf Master®
Parking Brake
Lever-actuated mechanical compression.
Safety Package
Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Steering Control
Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Standard Features
Enhanced engine hour meter
Front Caster Tires
11 x 4.0-5, smooth tread, semi-pneumatic.
power components
Speed
Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.
Deck Lift
Manual lift with hairpin from hole to hole for position adjustment.
Air Filter
Heavy-duty canister air filtration system
Fuel System
Electronic Fuel Injected
Engine Series
Command™ EFI
Fuel Capacity
5-gallon (18.9-L) fuel tank.
PTO Engagement
Electromagnetic 200 ft-lbs clutch.
Drive Description
Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.
Transmission Brand
Hydro-Gear
Drive Wheel Release
Allows unit movement without engine running.
Transmission Speeds
Infinitely Variable
decks
Blades
3 Blades at 18.00" Length
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed
Approximately 18,500 fpm.
Cutting Heights
1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Deck Style Description
Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
dimensions
Width
64.3 in. (163.3 cm)
Height
42.0 in. (106.7 cm)
Length
75.9 in. (192.8 cm)
