Stock #  14500

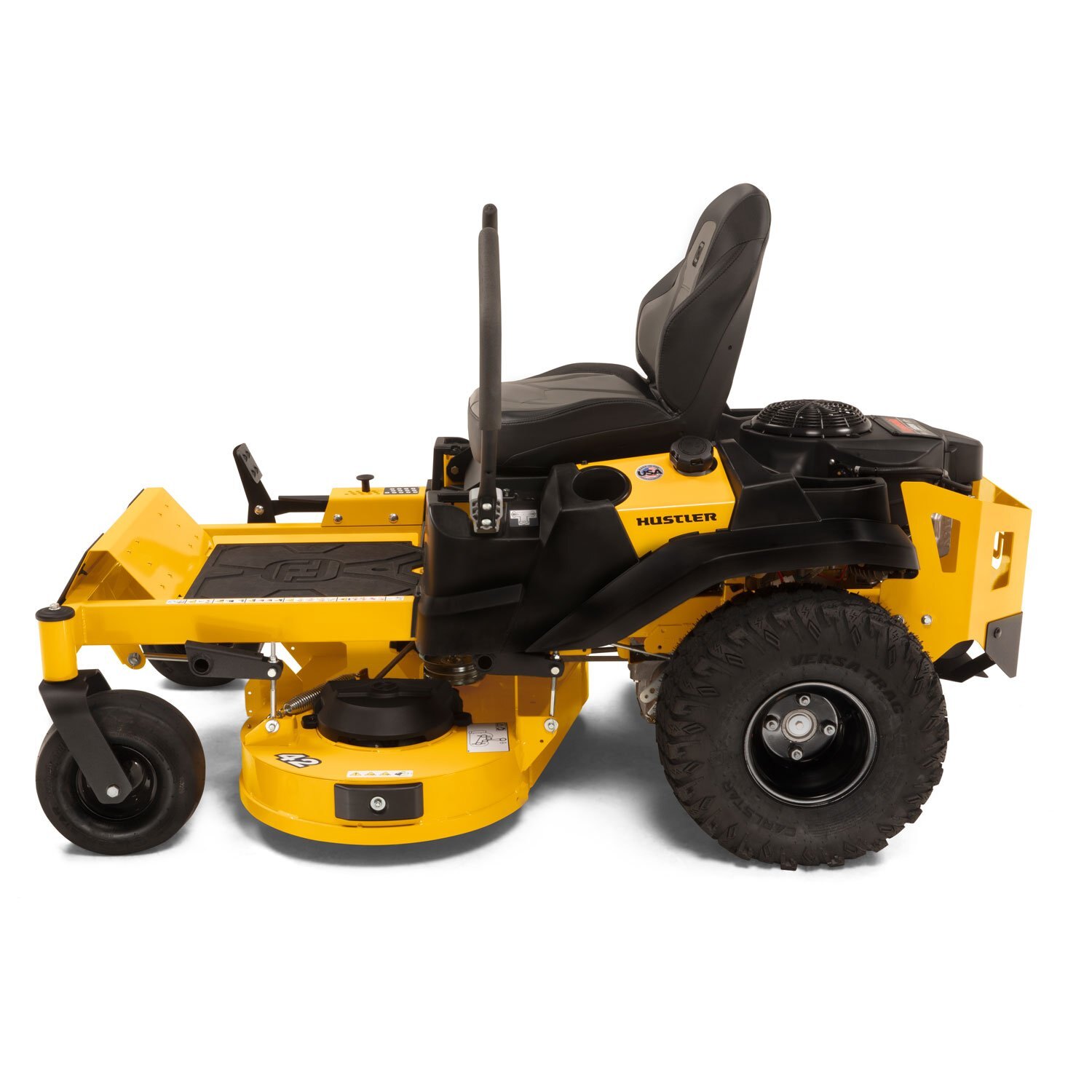

HUSTLER MOWER Raptor X-54"

  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
  • HUSTLER MOWER Raptor X 54
In Stock
Dealer Price $4,599 USD
All serialized products are subject to destination and setup fees.
Hold With Deposit What is Hold With Deposit?
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Pro-inspired, with commercial-grade features, the next generation of the Raptor Series brings powerhouse performance and a smooth, efficient ride straight to your yard. The Raptor X features include 1"x3" steel frame and 10 ga. fabricated steel deck, and oversized 3.5-gallon fuel tank. Homeowner's can mow in comfort with a 20" high-back bolstered seat, 20" VersaTrac* Drive tires and a rubberized floormat to help reduce vibrations. All backed by a 3 yr/ 300 hour limited warranty.
  • 18hp & 21.5hp Kawasaki Engines
  • 42”, 48" & 54” decks
  • Up to 7 mph mowing speed
  • 3-year / 300 hour limited warranty
Engine

Deck Sizes
18HP - Kawasaki FR600

42”

21.5HP - Kawasaki FR651

 48", 54”
Specifications
Model
Raptor X
Category Name
Zero Turn Mowers
Sale Type
New
Manufacturer
Hustler Turf
deck
SPINDLES
Aluminum with 1" shaft and double lip sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
4.5"
BLADE LENGTH
18.50"
CUTTING WIDTH
54"
DECK MATERIAL
Fabricated 11 gauge steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 gauge steel
BLADE TIP SPEED
18,600
DECK ENGAGEMENT
Ogura GT1.5
IMPACT TRIM AREA
1/4" x 1" steel bar
NUMBER OF BLADES
3
engine
COOLING
Air Cooled
DISPLACEMENT
726cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
21.5
ENGINE MANUFACTURER
Kawasaki FR651
general
SEAT
Bolstered 20" High Back Seat
CUP HOLDER
features

HUSTLER MOWER Raptor X 541
Welded Steel Deck
11 ga. welded fabricated steel deck.

2
Wider Stance
Additional operator platform width provides ample room and comfort for the operator.

3
SmoothTrak Steering
Precision control designed to help trim and maneuver easily around obstacles.

4
Bolstered Seat
Helps provide a comfortable ride with

5
Rubber Floor Mat
Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.

6
Fabricated Frame
Continuous one-piece 1½ inch by 3 inch welded tubular frame.

7
Foot-Operated Deck Lift
Easily adjust the deck height between 1.5” - 4.5”.

8
Easy to Service
Flip-up seat pan, removable floor pan, vented pulley covers.

9
20" Drive Tires
20" VersaTrack Drive Tires

10
Kawasaki® Power
Powered by a V-Twin Kawasaki engine.

HUSTLER MOWER Raptor X 54

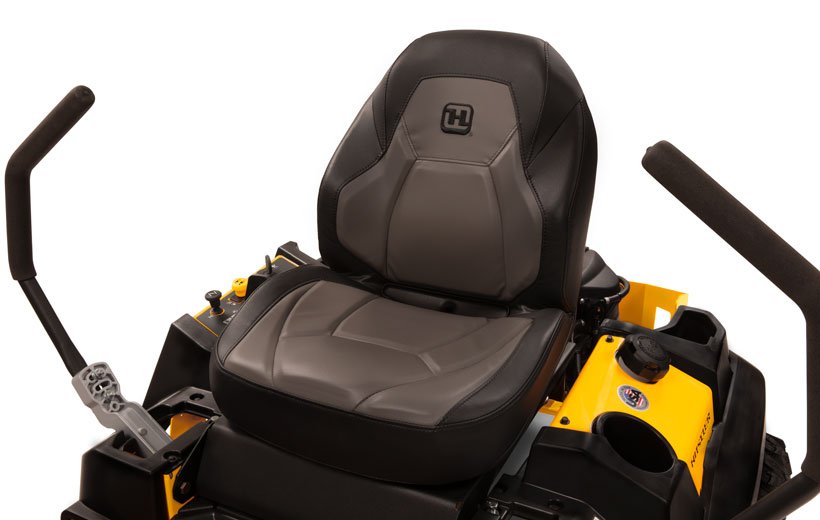

High Back Bolstered Seat

Helps provide a comfortable ride

HUSTLER MOWER Raptor X 54

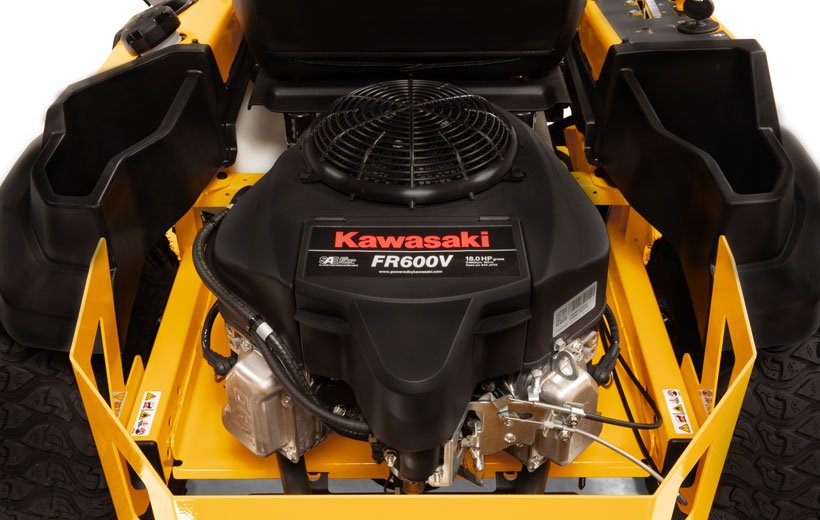

Kawasaki® Engine

Powered by a V-Twin Kawasaki Engine.

HUSTLER MOWER Raptor X 54

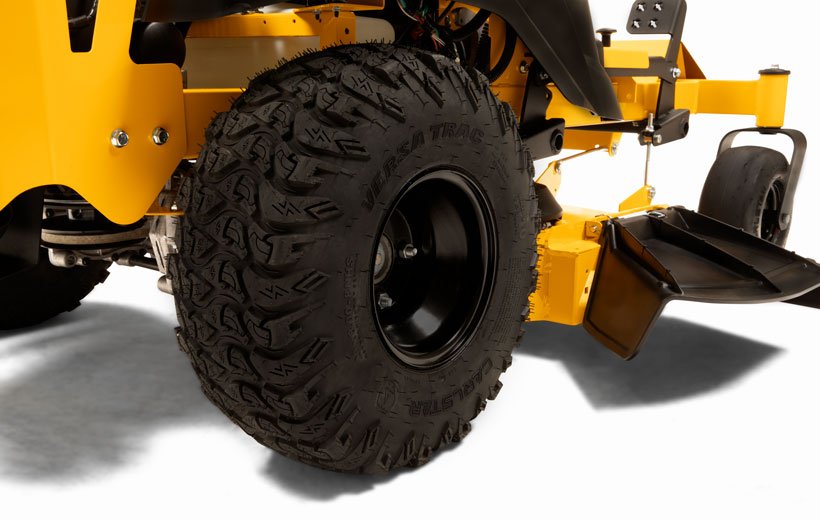

20" Drive Tires

20 x 8-8 VersaTrack Drive Tires
key specs
WARRANTY
3 Year/300 hour residential
DRIVE TIRE
18 X 10.5-8 BigBite™
FRONT TIRE
11 X 6
TRANSMISSION
Hydro-Gear ZT-2200
CUTTING WIDTH
54"
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
21.5
GROUND SPEED (FWD)
Up to 7 mph
ENGINE MANUFACTURER
Kawasaki FR651
dimensions
WEIGHT (LBS)
625
HEIGHT (INCHES)
40.8
LENGTH (INCHES)
70.6
DRIVE TIRE (INCHES)
20 x 10-8 VersaTrack
FRONT TIRE (INCHES)
11 X 6.5
WIDTH W/ CHUTE UP (INCHES)
58.6
TIRE-TO-TIRE WIDTH (INCHES)
46.5
PRODUCTIVITY (ACRES PER HOUR)
3.05
literature

Name

Link
Brochure PDF Download
construction
FRAME
1.5" X 3" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 1/4" steel
FRONT CASTER WHEEL
Sealed ball bearings
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-2200
FUEL CAPACITY
3.5 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 7 mph
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
69.5
MOWER LENGTH W/ CATCHER
91.4
