Stock #  15171

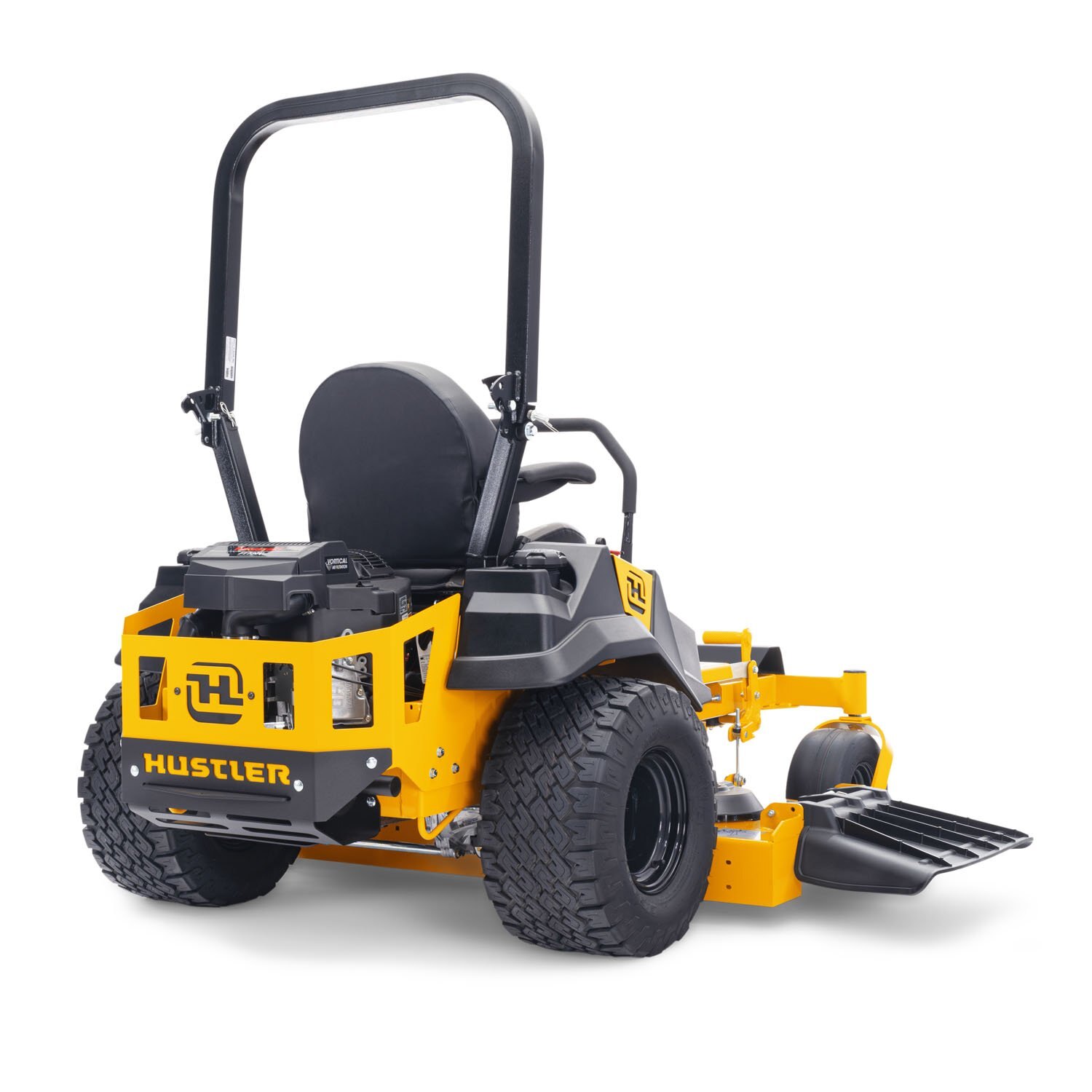

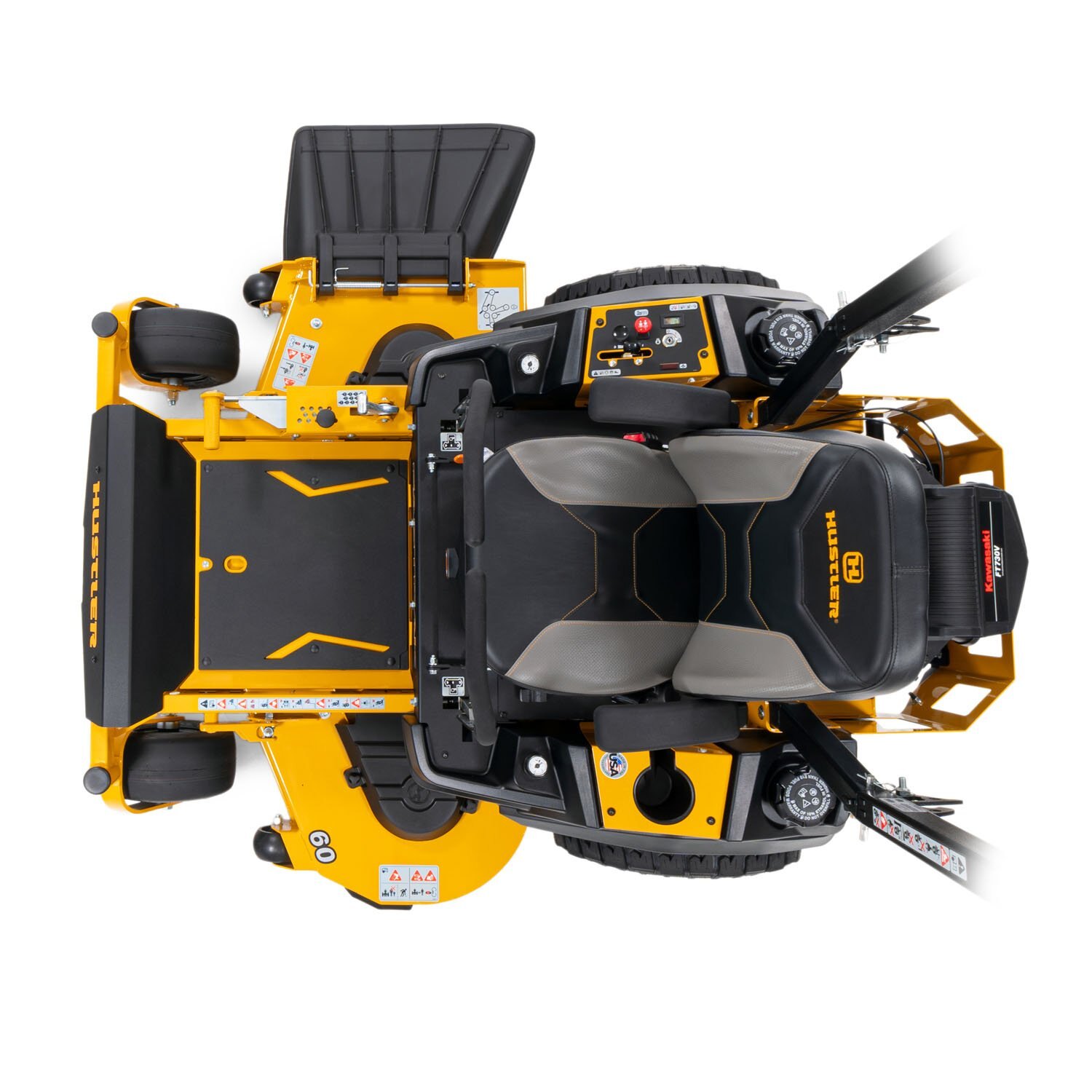

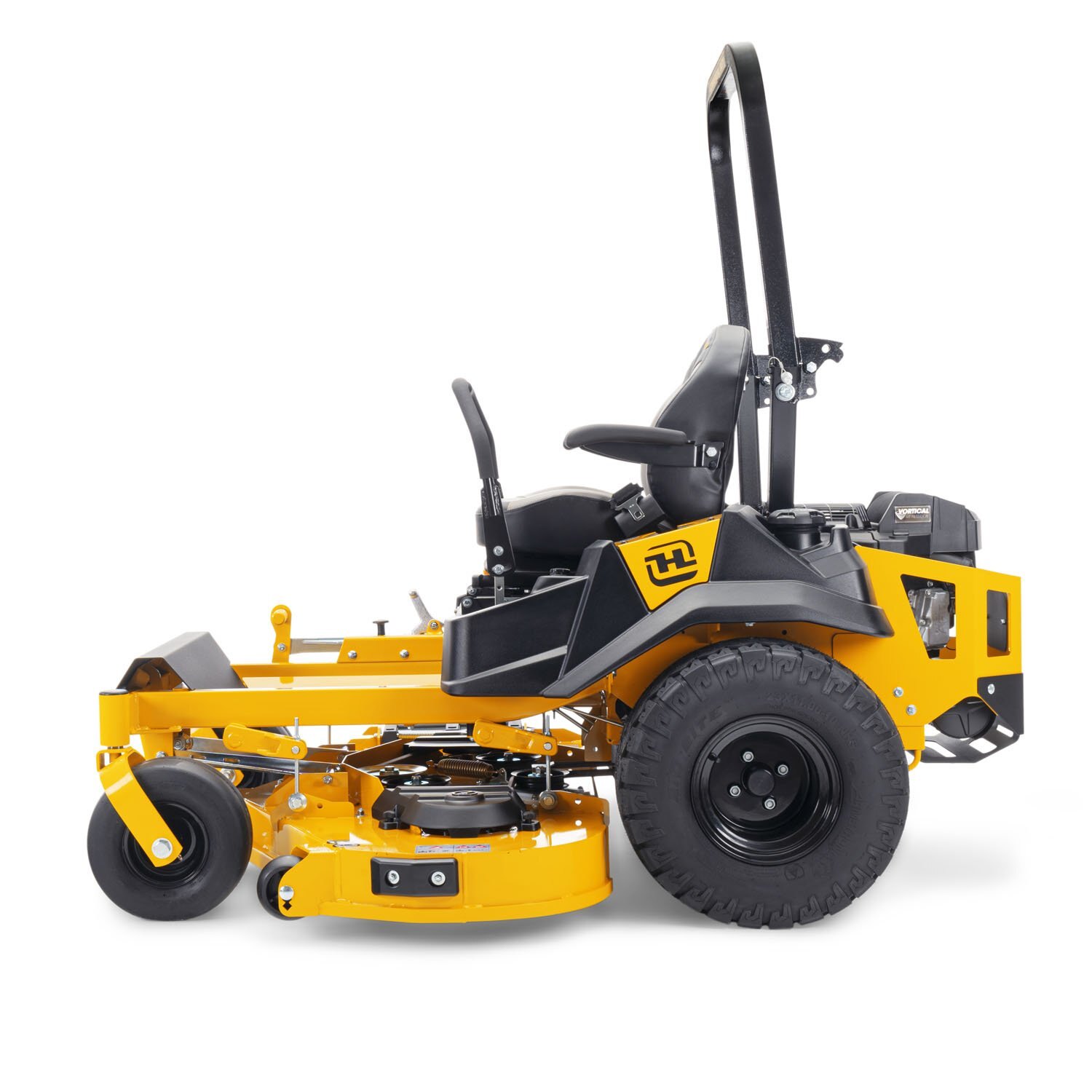

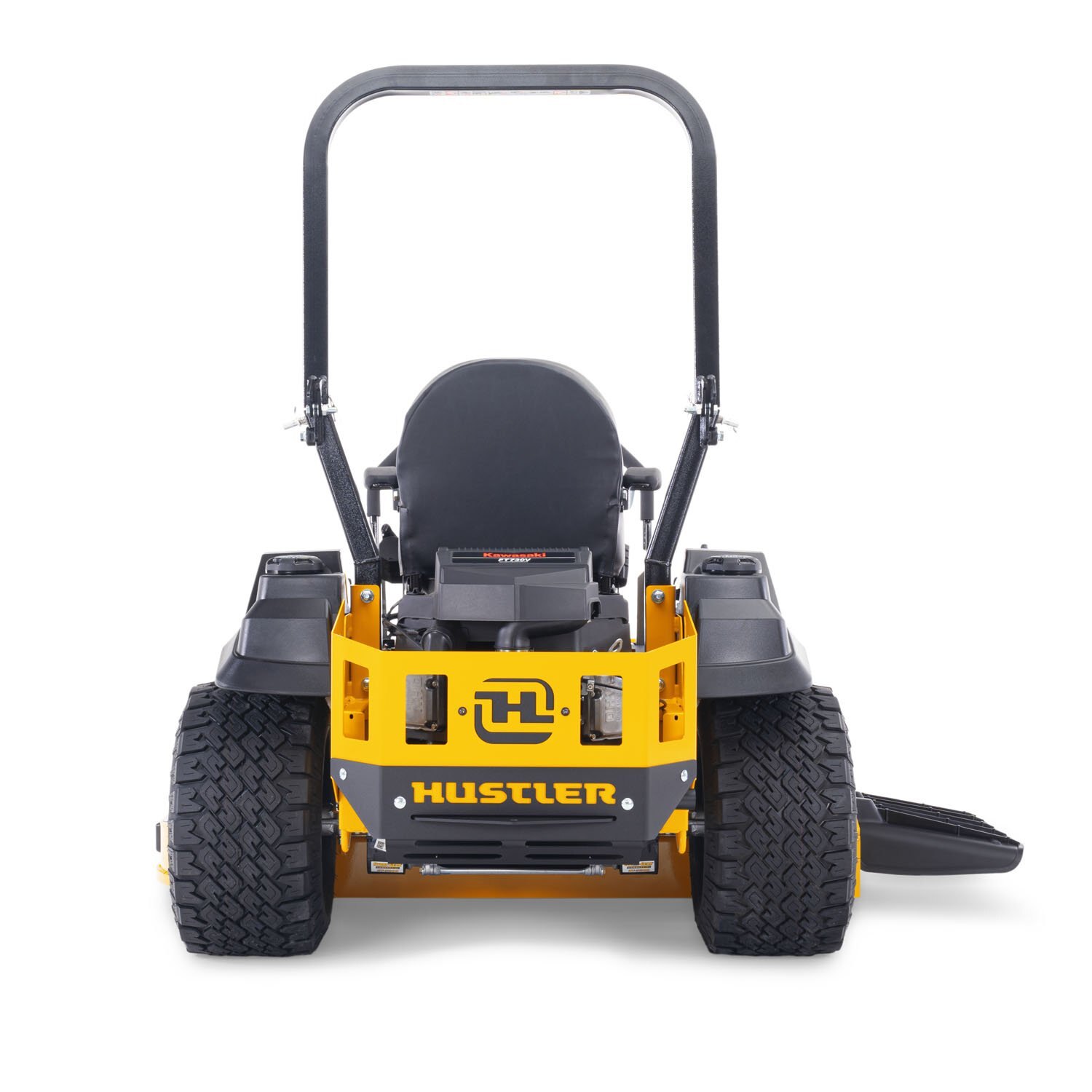

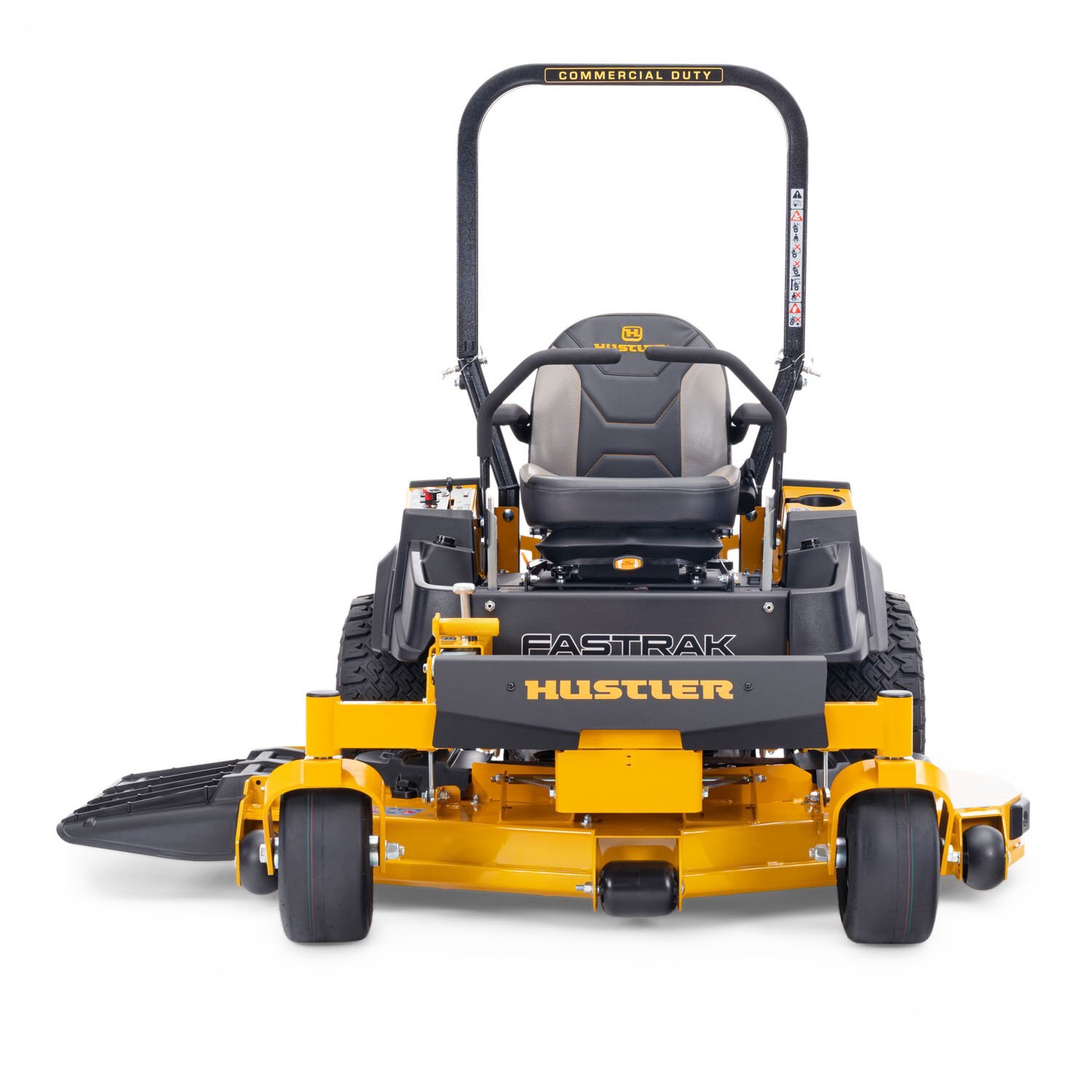

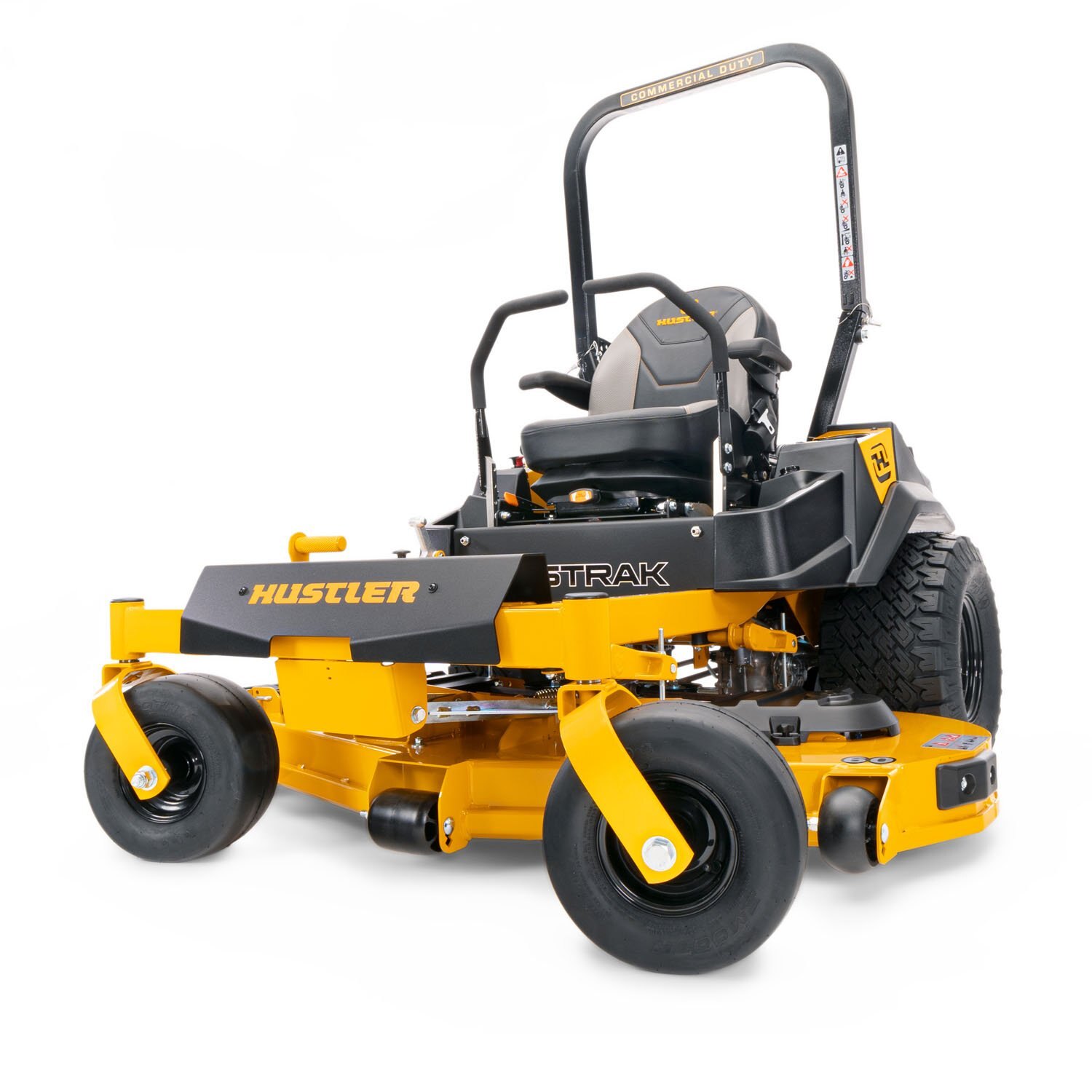

HUSTLER 48" FasTrak KAW 22hp FT691

Dealer Price $8,599 USD
All serialized products are subject to destination and setup fees.
In Stock Locations: 1 Tyler 1 Gatesville 1 Springtown Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.
Overview

All-New Redesigne d FasTrak

The FasTrak is the perfect mower to start your lawncare business, grow your lawncare business or mow residential large acreages like at a farm, ranch or place of business. The new additions include dual fuel tanks, rubber floor mat, frame tie-downs and cast deck hangers.

  • 22hp - 24hp Kawasaki
  • 48", 54" & 60” decks
  • Up to 10 mph mowing speed
  • 4yr / 750hr limited warranty
Engine

Deck Sizes

22HP - Kawasaki FT691

48”, 48”RD, 54”, 54”RD

24HP - Kawasaki FT730

60"

Specifications
Model
FasTrak
Category Name
Zero Turn Mowers
Sale Type
New
Manufacturer
Hustler Turf
deck
SPINDLES
Aluminum with 1" shaft and sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
5"
BLADE LENGTH
16.50"
CUTTING WIDTH
48", 48" Rear Discharge
DECK MATERIAL
Fabricated 10 gauge
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 11 gauge
BLADE TIP SPEED
18,600
DECK ENGAGEMENT
Electric PTO Clutch
IMPACT TRIM AREA
11 gauge formed channel with rolled edge
NUMBER OF BLADES
3
engine
COOLING
Air Cooled
DISPLACEMENT
726cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
22
ENGINE MANUFACTURER
Kawasaki FT691
general
SEAT
High-Back Suspension Seat
CUP HOLDER
features

HUSTLER 48 FasTrak KAW 22hp FT6911
Cast Deck Hangers
Designed to help improve durability.

2
SmoothTrak™ Steering
Precision control designed to help trim and maneuver easily around obstacles.

3
Easy Serviceability
Flip-up seat pan, removable floor pan and toolless removable pulley covers help make maintenance easy and simple.

4
Magnetic Top Pin Deck Lift
Adjust the deck height between 1.5” -4.5” with your foot.

5
Welded Steel Deck
Durable 10 ga. welded fabricated steel.

6
Dual Roto-Molded Fuel Tanks
8.5 gallon fuel capacity and dual mechanical fuel gauges.

HUSTLER 48 FasTrak KAW 22hp FT691

Kawasaki® FT Engine

Kawasaki® FT Engine with vortical air filtration helps clean debris for long engine life.

HUSTLER 48 FasTrak KAW 22hp FT691

Transmission

Serviceable Hydro-Gear® ZT-3200™ transmissions.

HUSTLER 48 FasTrak KAW 22hp FT691 Premium Seat

Premium suspension high-back seat to shield the operator from bumps and EVC cushion to take pressure off tail bone and lower back.

HUSTLER 48 FasTrak KAW 22hp FT691

Easy Serviceability

Flip-up seat pan, removable floor pan and toolless removable pulley covers make maintenance easy and simple.

HUSTLER 48 FasTrak KAW 22hp FT691

Cast Deck Hangers

Designed to help improve durability.

HUSTLER 48 FasTrak KAW 22hp FT691

SmoothTrak™ Steering

Precision control designed to help trim and maneuver easily around obstacles.

HUSTLER 48 FasTrak KAW 22hp FT691

Front and Rear Tie Downs

Front tie downs located on both sides of the front of the frame. Rear tie downs located on the bottom of either side of the rear engine guard.

HUSTLER 48 FasTrak KAW 22hp FT691

Rubber Floor Mat

Standard rubber floor mat for added operator comfort



key specs
WARRANTY
4 years or 750 hours
DRIVE TIRE
23 x 9.5-10 BigBite™
FRONT TIRE
13 x 6.5-6
TRANSMISSION
Hydro-Gear ZT-3200™
CUTTING WIDTH
48"
FUEL CAPACITY
8.5 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
22
GROUND SPEED (FWD)
Up to 10 mph
ENGINE MANUFACTURER
Kawasaki FT691
dimensions
WEIGHT (LBS)
910, 924 Rear Discharge
HEIGHT (INCHES)
45.5, 68.7 w/ ROPS
LENGTH (INCHES)
76.7
DRIVE TIRE (INCHES)
23 x 9.5-10 BigBite™
FRONT TIRE (INCHES)
13 x 6.5-6
WIDTH W/ CHUTE UP (INCHES)
50, 48.8 Rear Discharge
TIRE-TO-TIRE WIDTH (INCHES)
47.5
PRODUCTIVITY (ACRES PER HOUR)
3.88
literature

Name

Link

Brochure PDF Download
Extra Fields
Field1
ASSEMBLED
EngineModelNumber
FT691V-BS08-R
ProductSerialNumber
26044069
construction
FRAME
1.50" X 3" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Sealed ball bearings
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-3200™
FUEL CAPACITY
8.5 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 10 mph
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
7.2 bushel
POWERED / NON-POWERED
Powered
MOWER WIDTH W/ CATCHER
57"
STYLE 2: CATCHER STYLE
Bac-Vac
MOWER LENGTH W/ CATCHER
98"
STYLE 2: CATCHER CAPACITY
8 bushel
STYLE 2: POWERED / NON-POWERED
Powered
STYLE 2: MOWER WIDTH W/ CATCHER
57"
STYLE 2: MOWER LENGTH W/ CATCHER
88.75"
