Stock #
16974

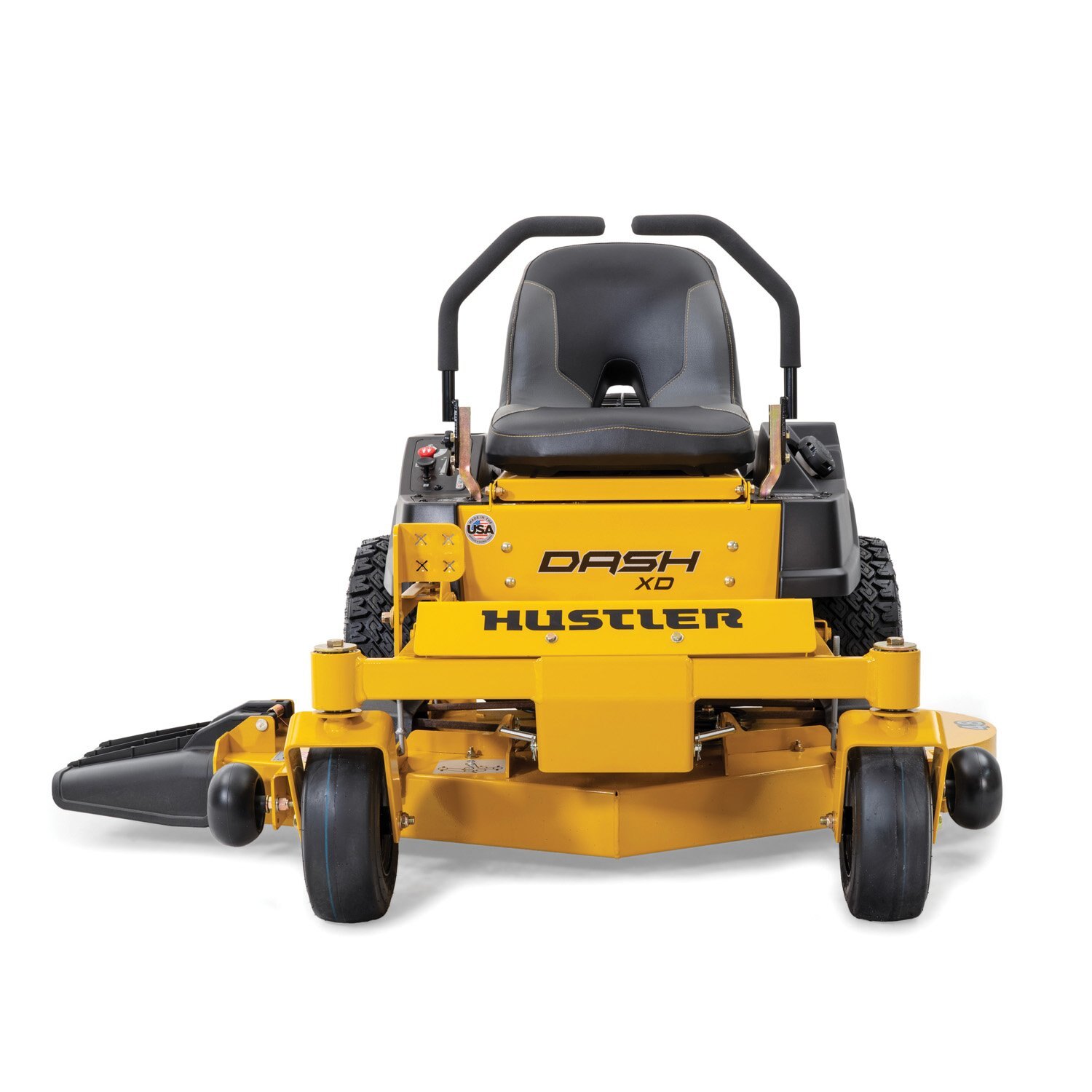

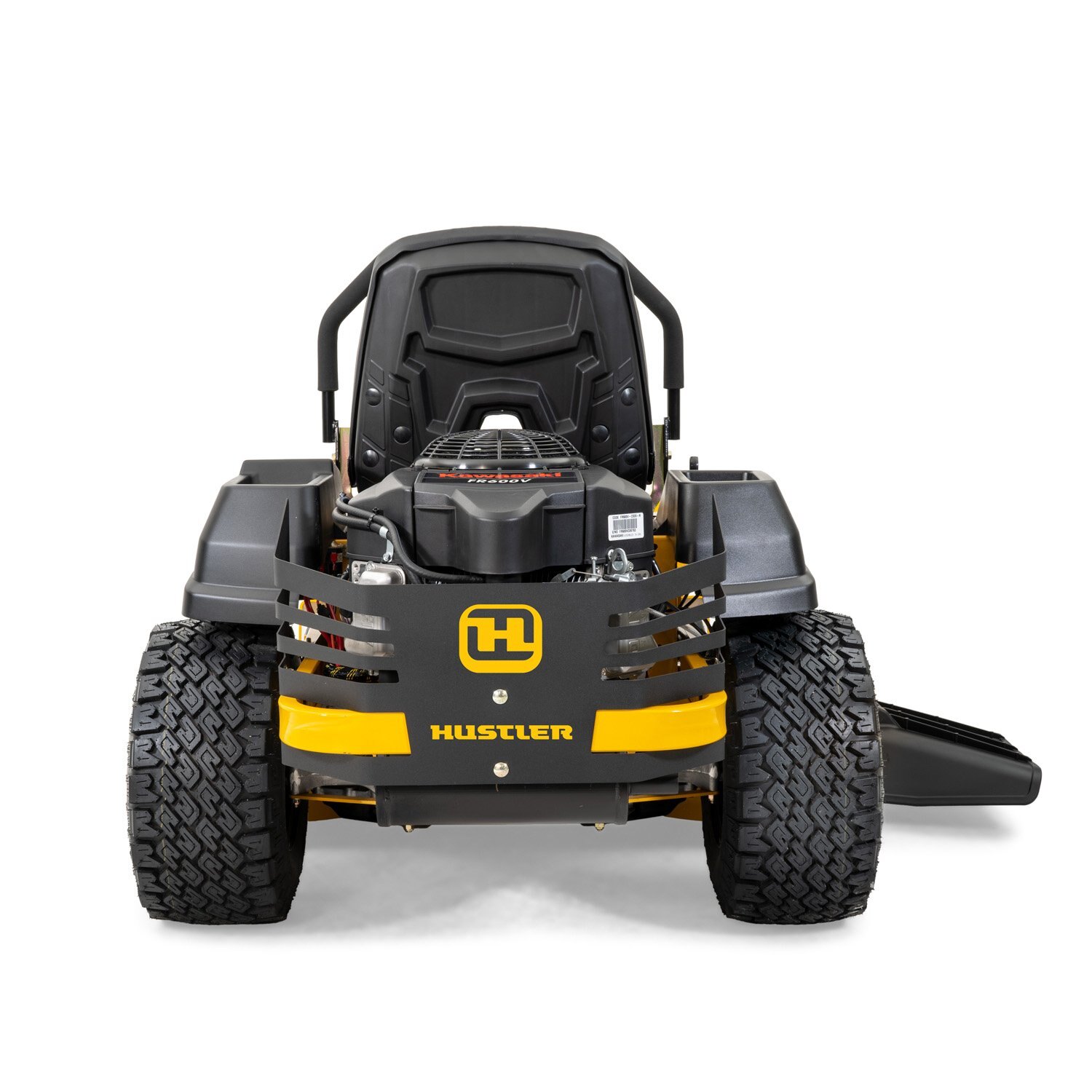

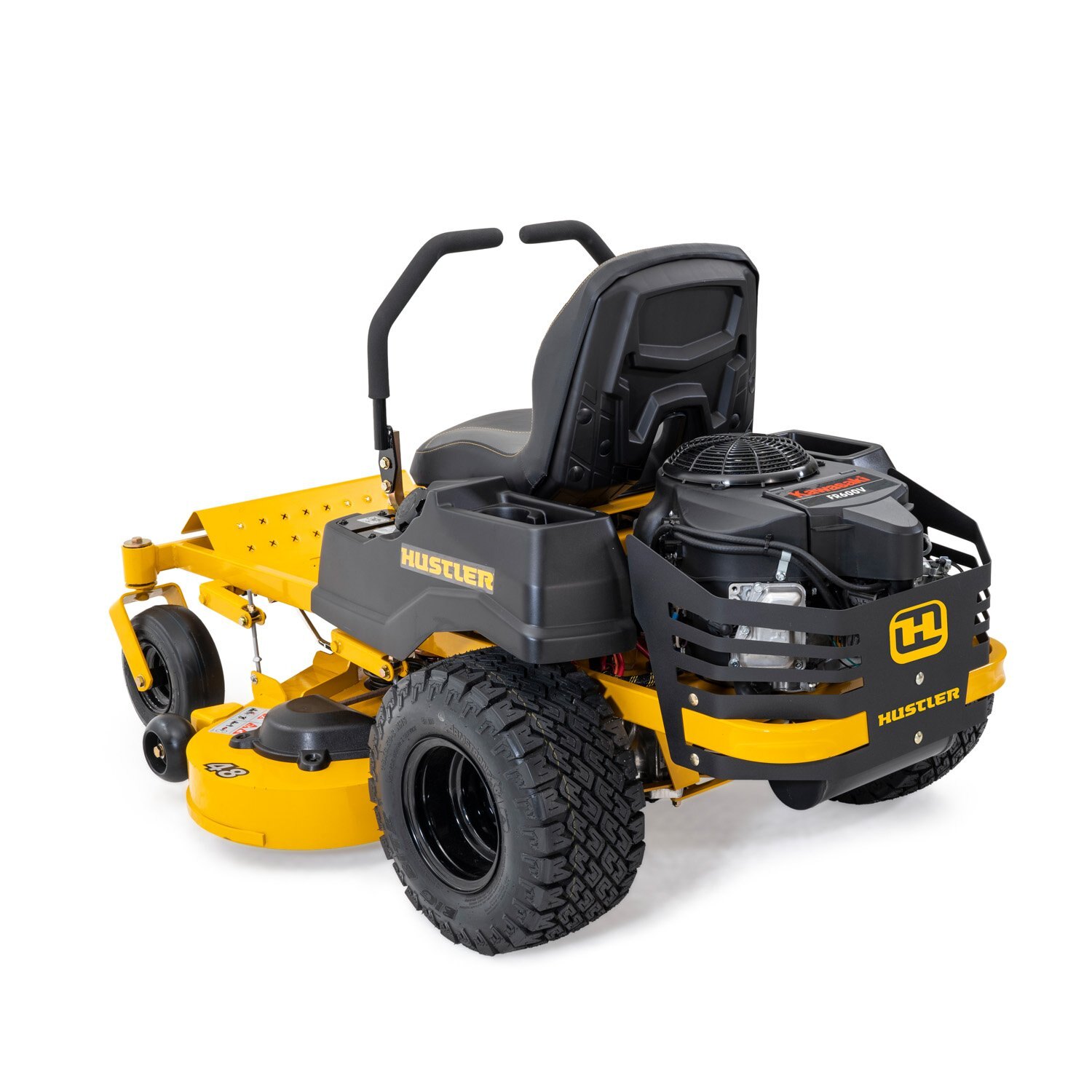

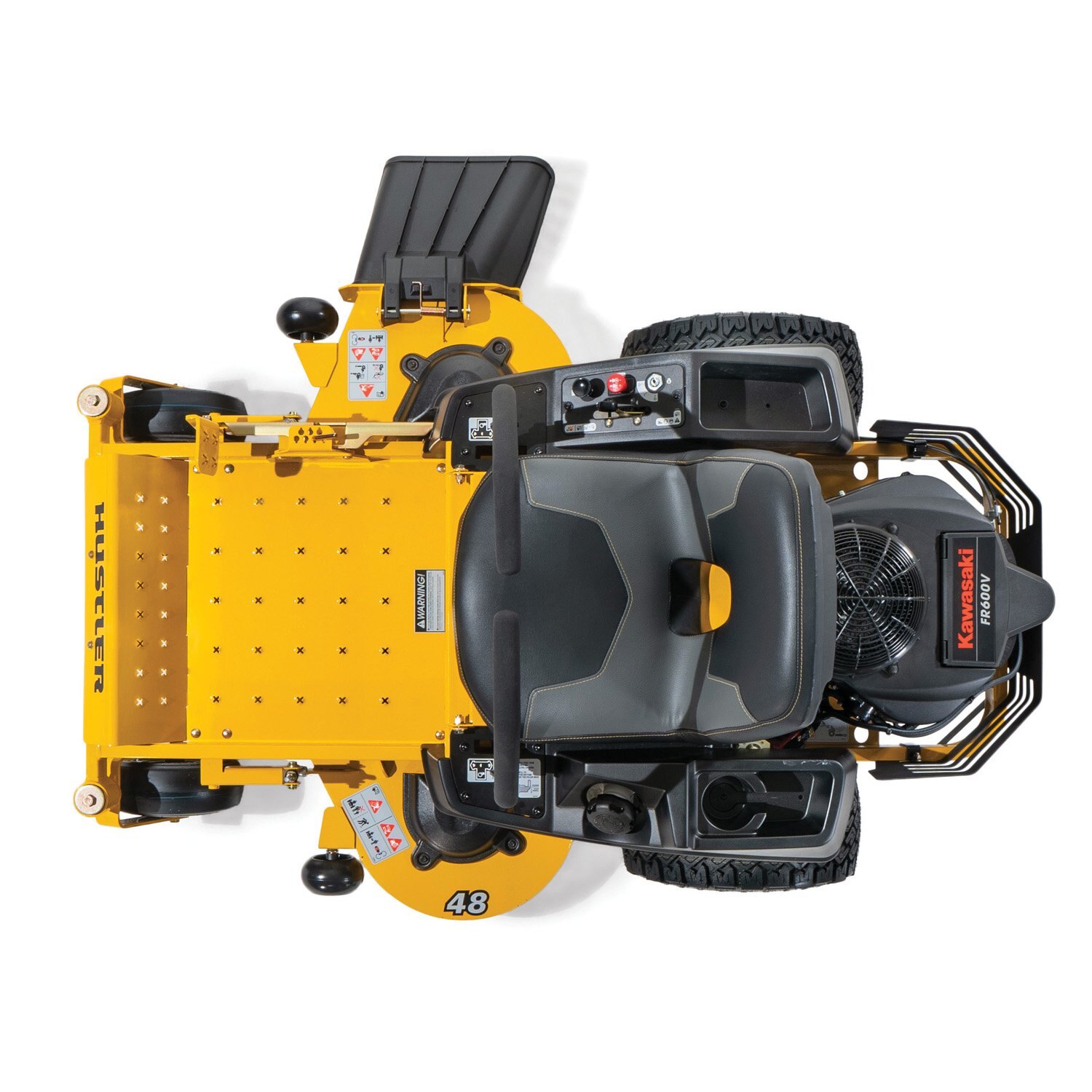

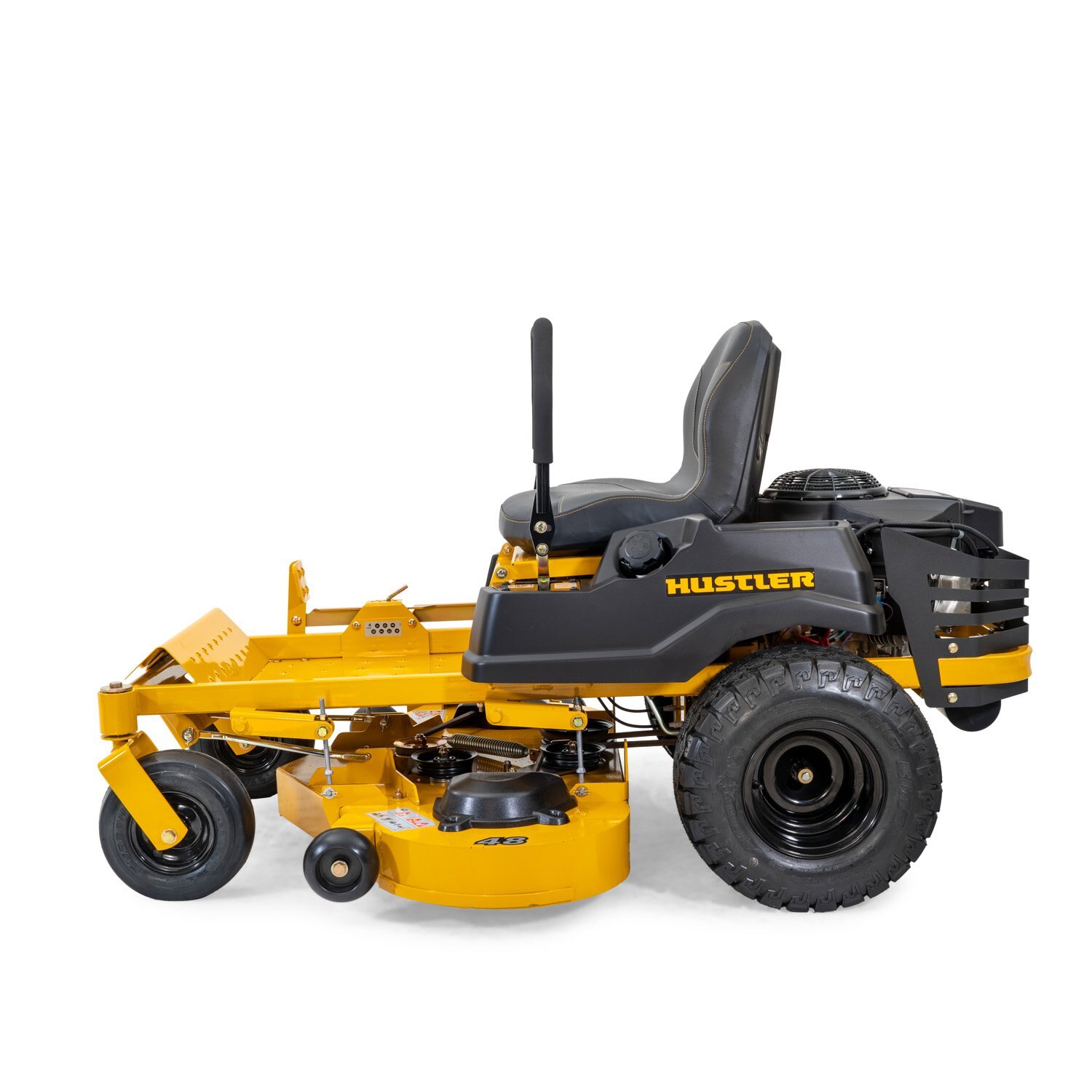

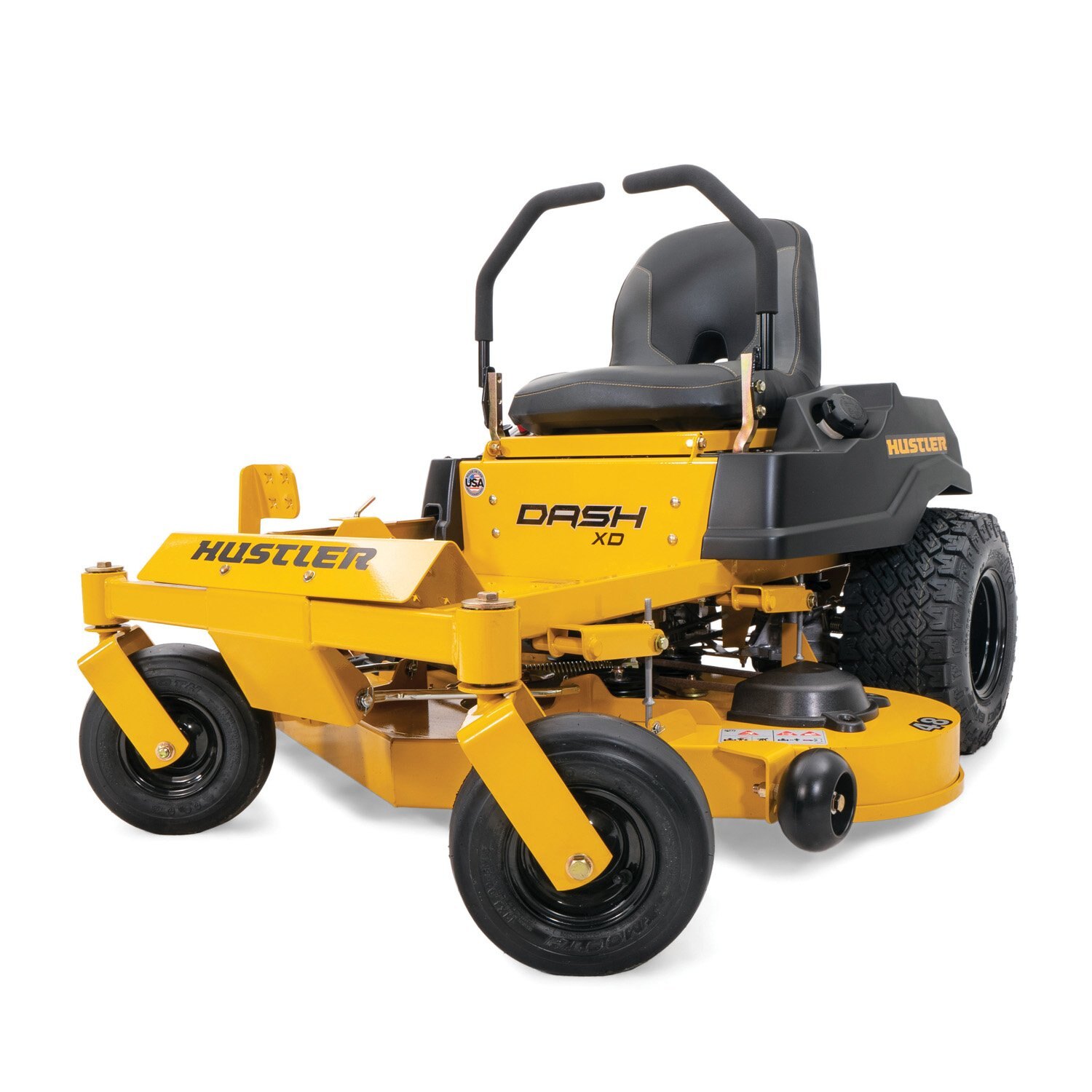

HUSTLER Dash XD-42" 15HP
In Stock
- Location:
- Weatherford
Dealer Price
$3,650 USD
In Stock Locations:
1
Weatherford
Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.
Overview
Specifications
deck
engine
general
features
key specs
dimensions
literature
Extra Fields
construction
drive system
dimensions with catcher
|
The Dash® XD is Hustler Turf's most compact residential mower designed for smaller property owners. The smaller design makes it ideal for garage storage and fitting through tight spaces like fence gates. One piece fabricated frame and welded steel deck come standard along with bolstered seat, Kawasaki® Power & BigBite™ tires. | ||||||
| ||||||
|
Model
Dash XD
Category Name
Zero Turn Mowers
Sale Type
New
Manufacturer
Hustler Turf
SPINDLES
Aluminum w/ 3/4" shaft and triple protection sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
4.1"
BLADE LENGTH
20.50"
CUTTING WIDTH
42"
DECK MATERIAL
Fabricated 11 gauge steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 14 gauge steel
BLADE TIP SPEED
16,700
DECK ENGAGEMENT
Electric PTO Clutch
IMPACT TRIM AREA
1/4" x 3/4" steel bar
NUMBER OF BLADES
2
COOLING
Air Cooled
DISPLACEMENT
603cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
15
ENGINE MANUFACTURER
Kawasaki
SEAT
Bolstered seat with built-in lumbar support
CUP HOLDER
Features
|
2 3 4 5 6 7 8 |
|
|
|
1
WARRANTY
2 Year/ 200 Hour (2nd year parts only)
DRIVE TIRE
18 X 6.5 - 8 BigBite™
FRONT TIRE
11 X 4
TRANSMISSION
Hydro-Gear ZT-1800®
CUTTING WIDTH
42"
FUEL CAPACITY
2 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
15
GROUND SPEED (FWD)
Up to 6 mph
ENGINE MANUFACTURER
Kawasaki
WEIGHT (LBS)
467
HEIGHT (INCHES)
40
LENGTH (INCHES)
65.4
DRIVE TIRE (INCHES)
18 X 8.5 - 8 BigBite™
FRONT TIRE (INCHES)
11 X 4
WIDTH W/ CHUTE UP (INCHES)
43.25
TIRE-TO-TIRE WIDTH (INCHES)
41"
PRODUCTIVITY (ACRES PER HOUR)
2.04
Literature
Name |
Link |
| Brochure PDF | Download |
ProductSerialNumber
23036541
FRAME
1" X 2" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 1/4" steel
FRONT CASTER WHEEL
Sealed ball bearings
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-1800®
FUEL CAPACITY
2 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 6 mph
CATCHER STYLE
Side Catcher
CATCHER CAPACITY
2 bushel
POWERED / NON-POWERED
Non-powered
Model
Dash XD
Category Name
Zero Turn Mowers
Sale Type
New
Manufacturer
Hustler Turf
Quantity
1
