ID # 38678090

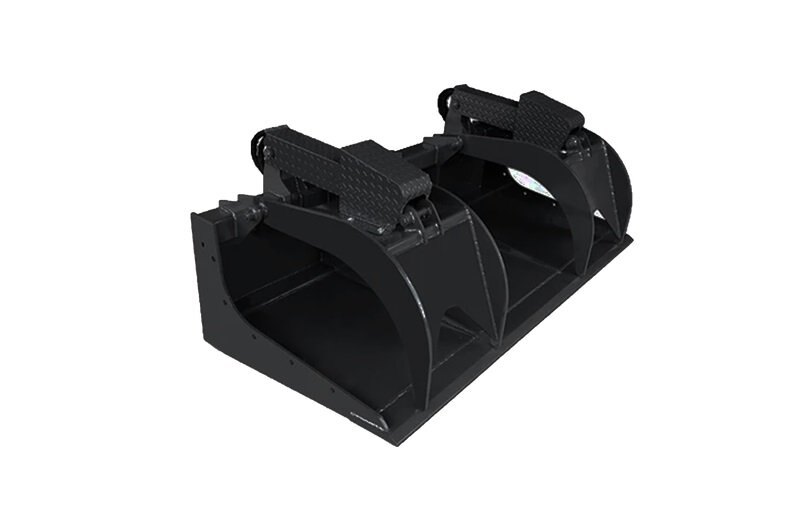

CID X-Treme Duty Grapple Bucket XGB96

Call for Price
Overview

The X-treme Grapple Bucket is perfect for picking up logs, rocks, construction supplies, or any other type of debris. Designed for larger machines, it can handle more material than our Heavy Duty Grapple Bucket. One key feature that sets our X-treme Grapple Bucket apart from competitors is the enclosed hydraulic cylinder shaft, protecting both the cylinder and the rod from damage caused by falling debris. It features 2″ bore by 10″ stroke cylinders that operate independently to adjust for uneven loads. The hydraulic lines are routed inside the tubing to prevent tears. Built with top-quality steel, oversized pins and bushings, and grease fittings at every pivot point, the X-treme Grapple Bucket also includes a 1″ x 8″ cutting edge. Each unit exceeds the lifting capacity of the skid steer machine it is attached to, suitable for machines with 65 HP and up.



Specifications
Model
X-Treme Duty Grapple Bucket
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
CID
RPM
Recommended for 65 HP and above machines
Notes
Hydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge
Product
XGB96
Description
X-TREME GRAPPLE BUCKET, 96”
Weight (lbs)
1266
Cutting Edges
1" x 8"
Cylinder Size
2" x 10" 4,000 PSI
Working Width
96”
Product Family
X-Treme Grapple Bucket
Tine Thickness
5/8" top tines
diagram
CID X Treme Duty Grapple Bucket XGB96



literature

Name

Link

Brochure Download
