ID # 38678377

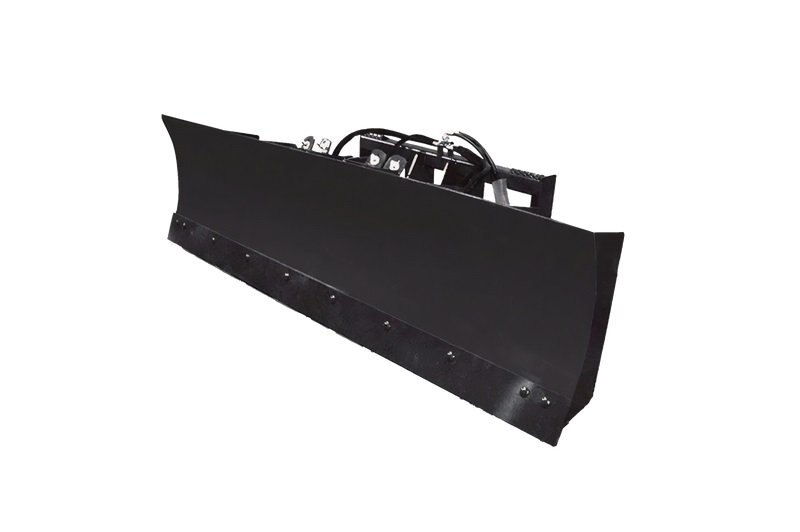

CID Multi-Purpose Angle Blade MPAB84

Call for Price
Overview

Our Multi-Purpose Angle Blade is unique and versatile. It is designed to function both as a snow plow and an angle blade with ease. To use it as a snow plow, simply remove the center pin, allowing the blade to tip when hitting an obstacle. Powerful springs retract the blade into position once the object is cleared. To use it as an angle blade, leave the center pins in place, and you’re ready to move earth. This 4-way dozer blade allows up and down movement from your skid steer and side-to-side movement from the attachment. It features 1/2″ thick, 6″ wide replaceable bolt-on cutting edges, and comes equipped with two 3″ bore, 6″ stroke cylinders, couplings, and hoses, ready for use on delivery.

Specifications
Model
Multi-Purpose Angle Blade
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
CID
Notes
Operates as a snow plow or dozer blade
Product
MPAB84
Description
MULTI-PURPOSE ANGLE BLADE, 84”
Weight (lbs)
855
Cutting Edges
Replaceable 1/2" x 6" AR400 Bolt-On
Cylinder Size
3" x 6"
Working Width
84”
Product Family
Multi-Purpose Angle Blade
Material Thickness
3/16" Moldboard
diagram
CID Multi Purpose Angle Blade MPAB84



literature

Name

Link

Brochure Download
