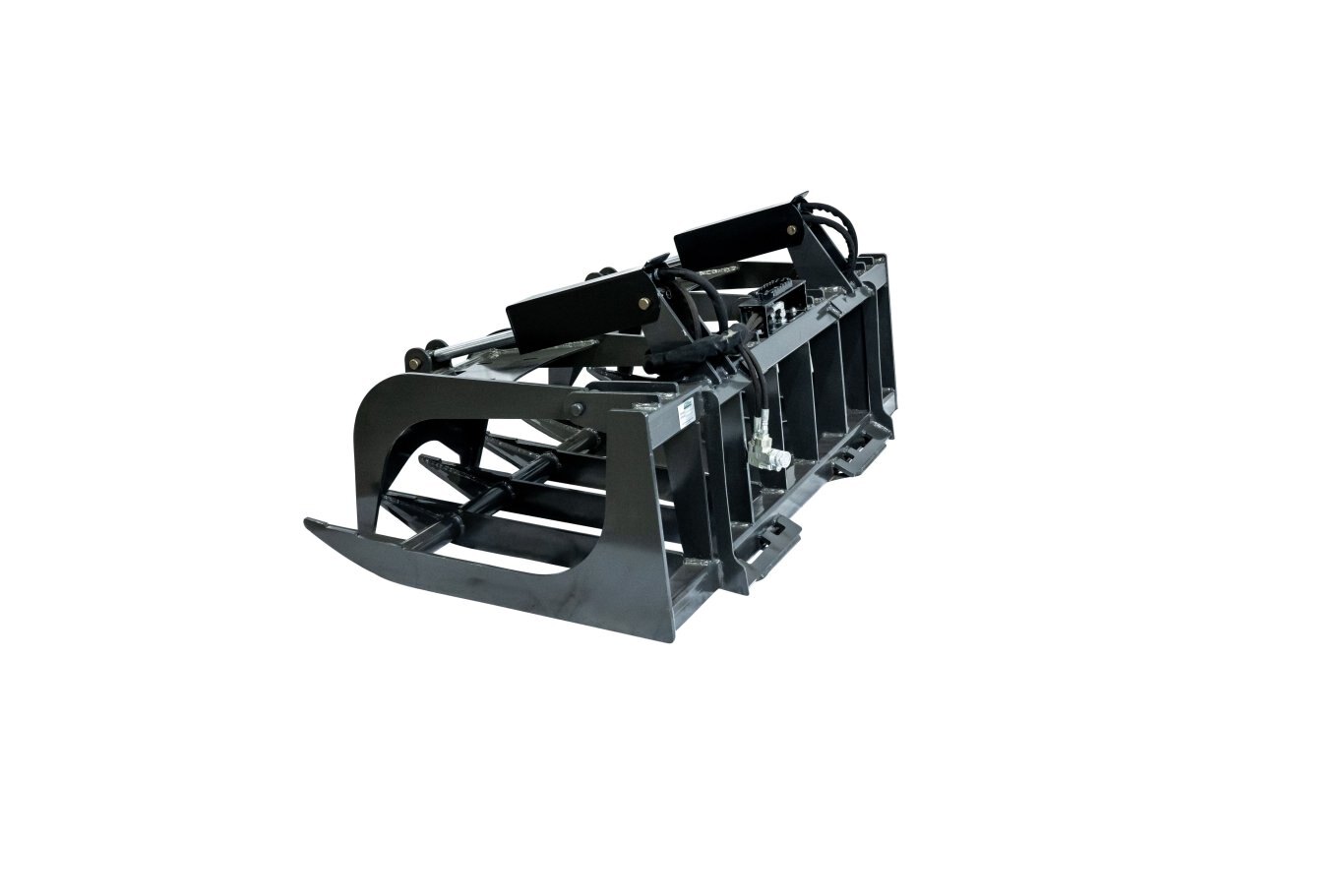

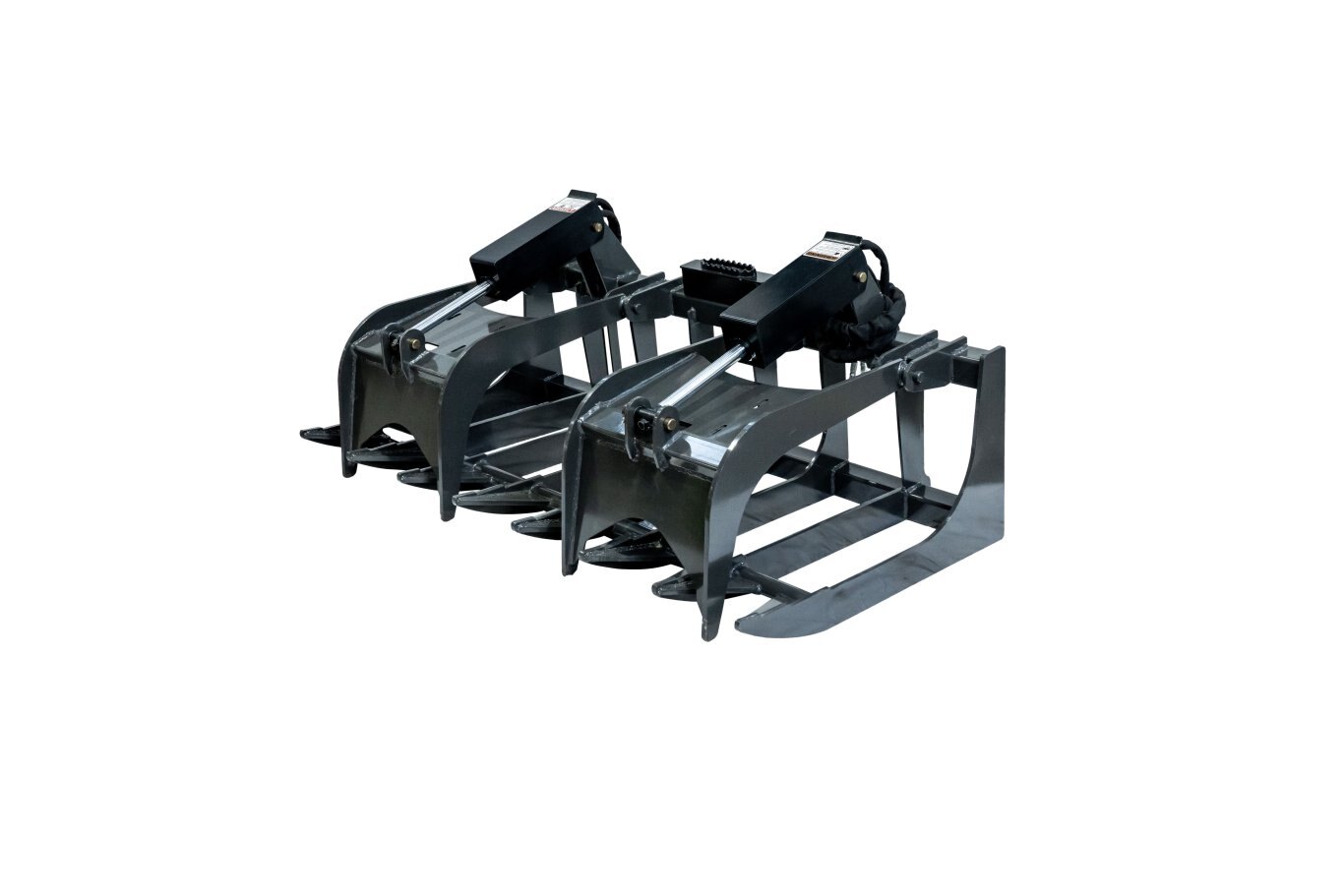

CID Standard Duty Root Grapple SRG66

Call for Price
Overview

Our root grapples are a necessity in the tree industry, and for contractors clearing lots for home site building. They are ideal for moving logs, brush, rocks or just about any type of debris, which makes them essential tools for storm damage clean up. All of our units are built from top quality steel and will exceed the lifting capacity of the skid steer machines they are used on. Our grapples feature independently operated cylinder(s) to adjust uneven loads. They also feature grease fittings at every pivot point, and commonly come with rod covers which is a must have. This unit is rated for 45HP and under, has 2×10 cylinders, hydraulic lines routed inside the frame for protection, has 3/8″ steel plate on top and bottom and is built with 3″ square tubing.

Specifications
Model
Standard Duty Root Grapple
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
CID
RPM
Recommended for 35-45 HP and under machines
Notes
Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines
Product
SRG66
Description
STANDARD ROOT GRAPPLE, 66”
Weight (lbs)
559
Cylinder Size
2" bore x 10" stroke
Working Width
66”
Product Family
Standard Duty Root Grapple
Plate Thickness
3/8"
Thickness Of Square Tubing
3"
