Stock #  30572

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM

  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
  • VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOM
In Stock
Dealer Price $31,999 USD
Hold With Deposit What is Hold With Deposit?
In Stock Locations: 2 Gatesville 2 Springtown 2 Weatherford Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

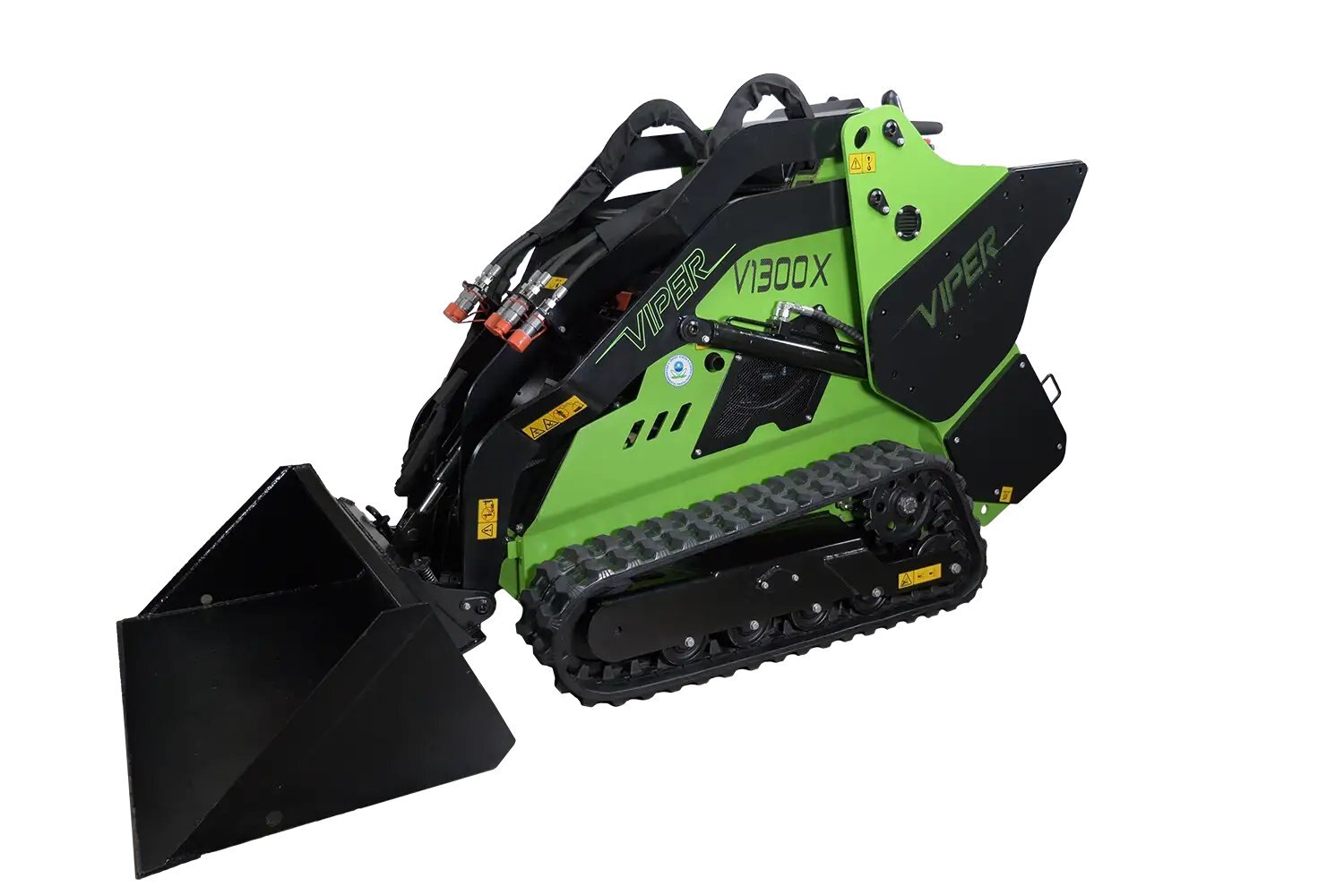

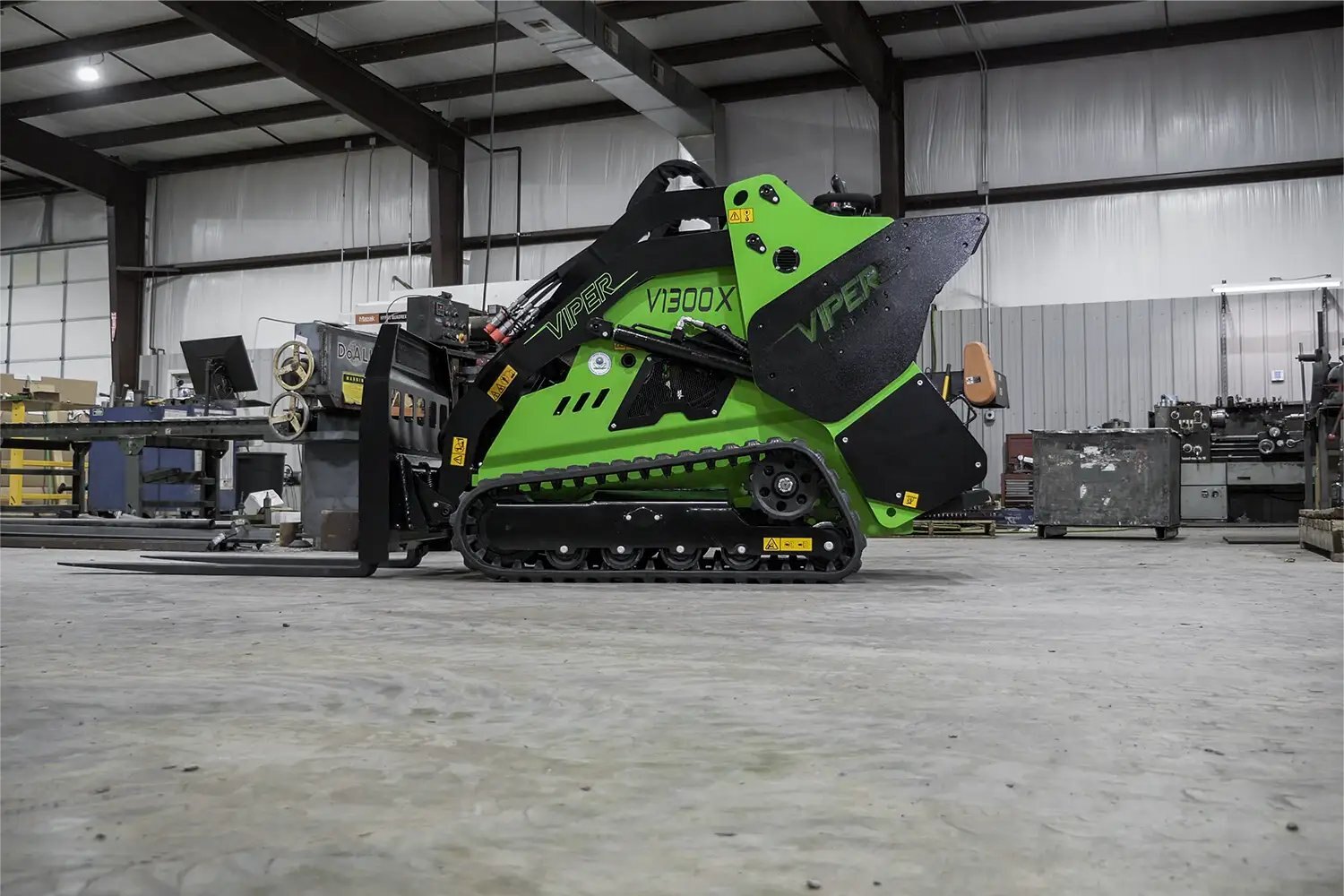

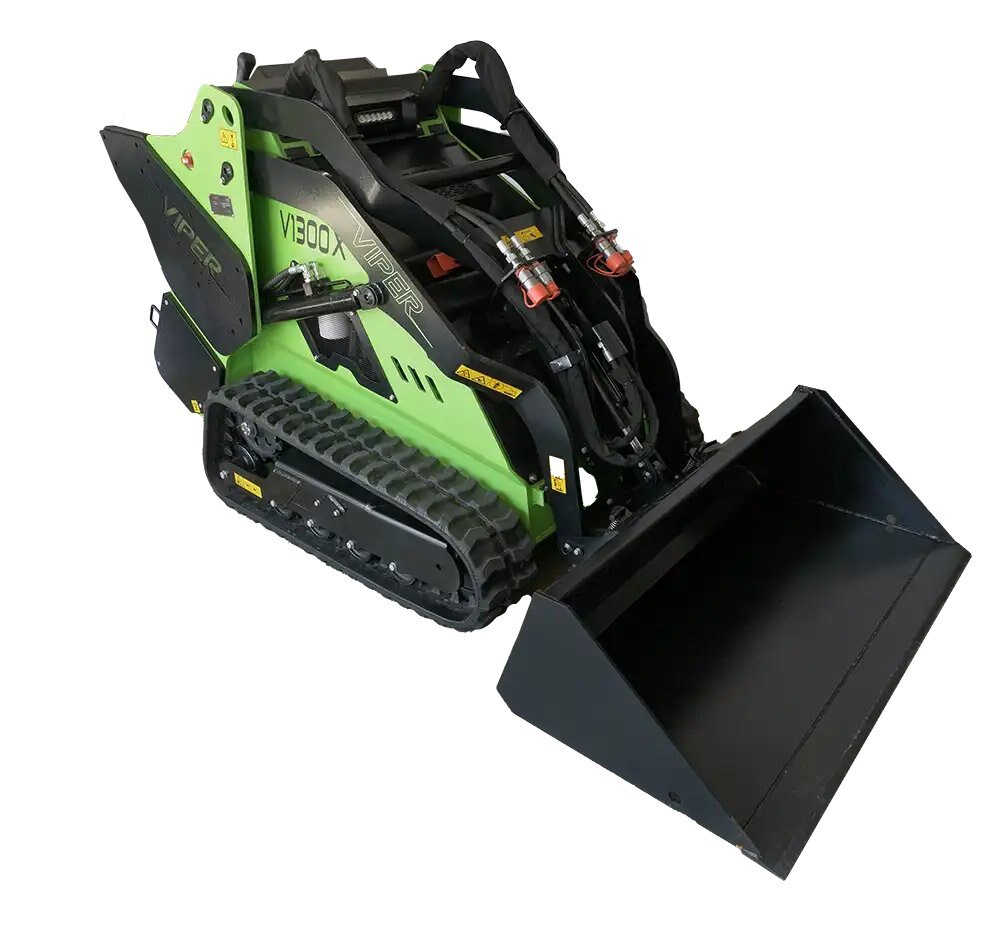

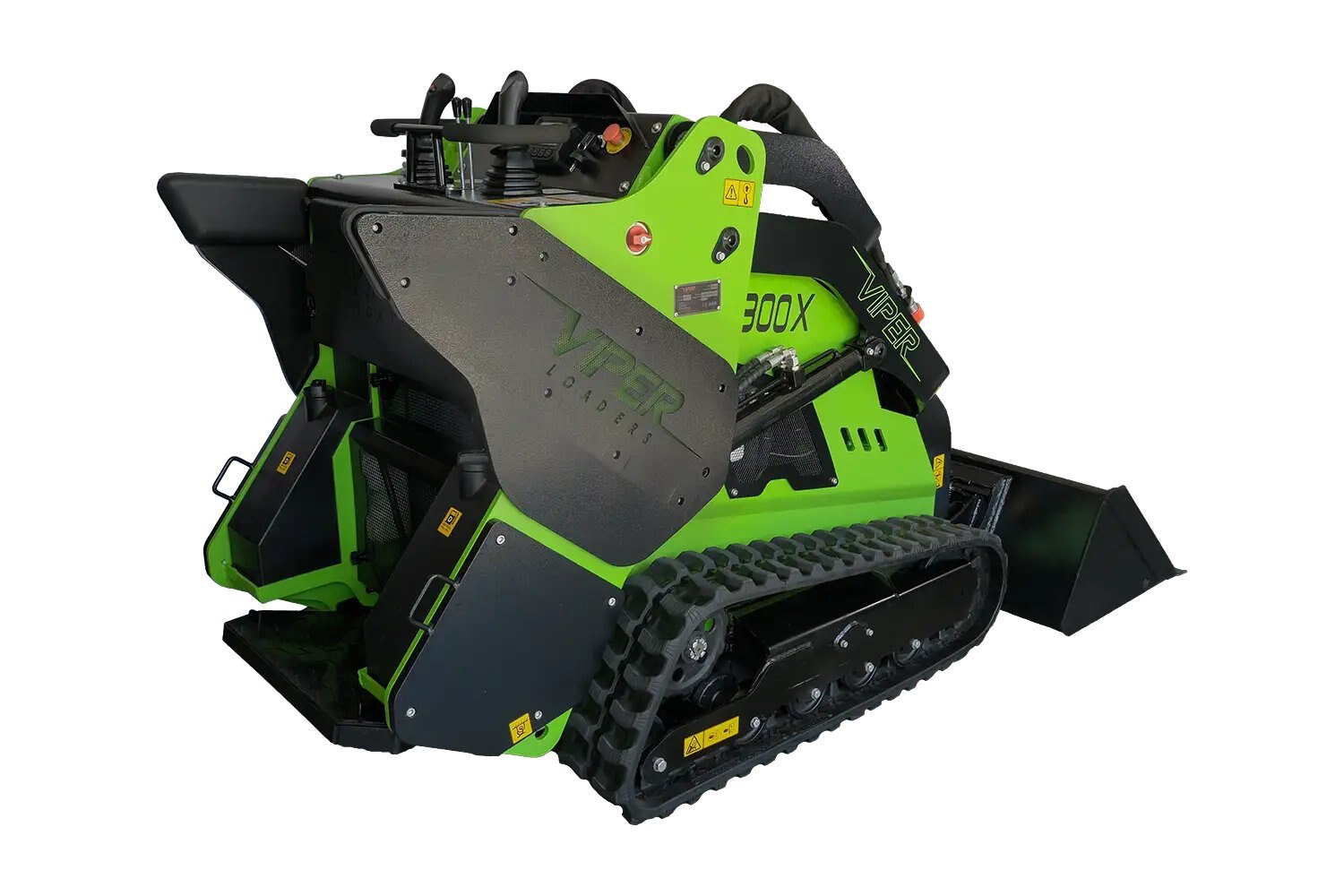

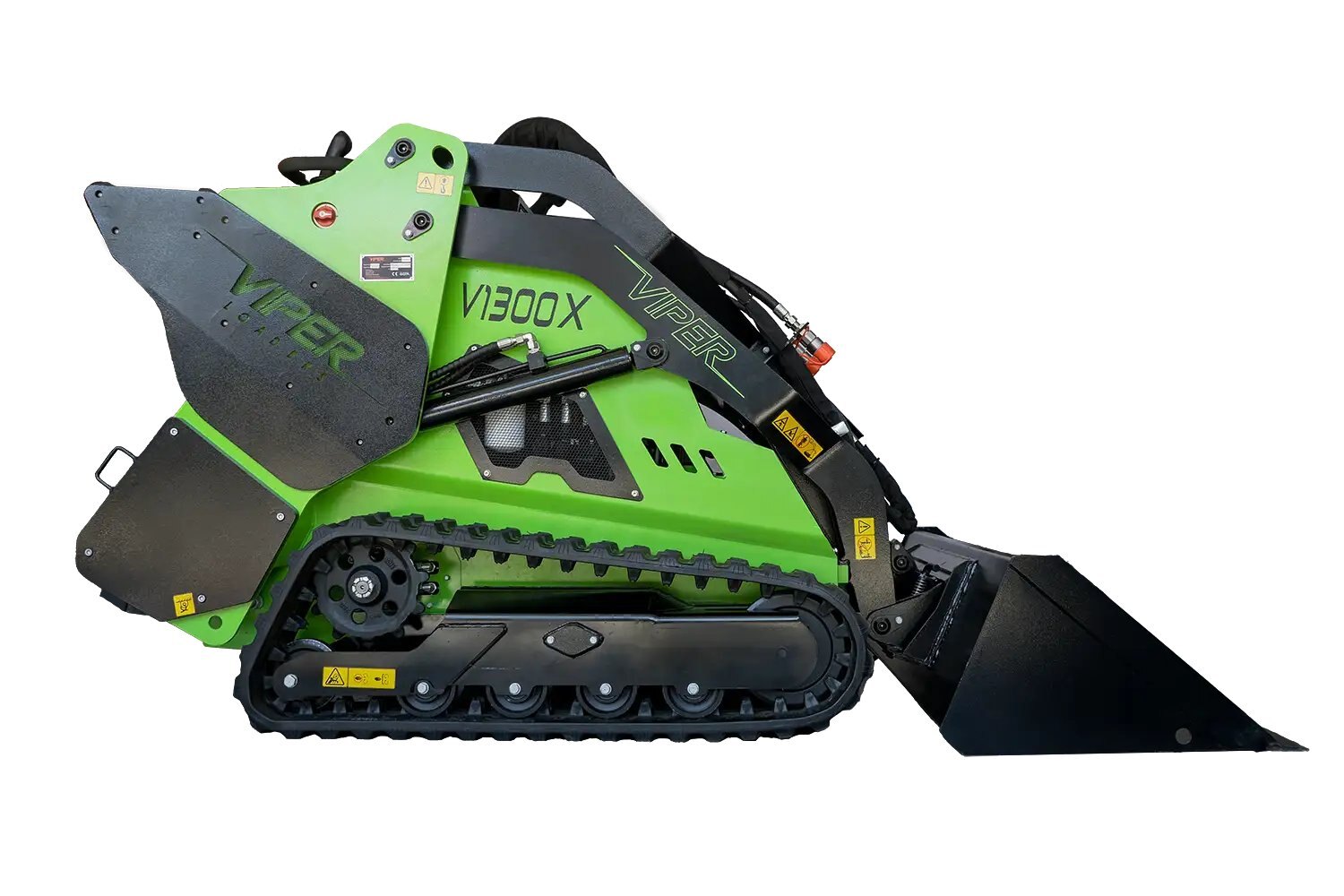

The all-new Viper V1300X gives you all the options and accessories you need to complete even the toughest tasks. With outstanding build quality and parts sourced from industry-leading manufacturers, the V1300X is built to excel at anything you can throw its way. The V1300X has a narrow footprint, powerful engine and impressive operating capacity, allowing you to tackle a large variety of jobs with ease.
Specifications
Model
V1300X
Category Name
General
Sale Type
New
Manufacturer
VIPER LOADERS
engine
Make/Model  Yanmar 3TNV80F diesel engine
Fuel/Cooling  Diesel/Liquid
Horsepower (SAE Gross J1955)  17.8 kW / 24 HP or 18.4 kW / 24.7 HP
Rated engine speed  3000 RPM
Torque  52.4 ft-lb @1900 RPM (SAE Net)
Number of Cylinders  3
Displacement  1.266 L (77.2 in³)
Bore/Stroke  80 mm (3.15 in) / 84 mm (3.3 in)
Fuel Consumption  1.55 gph
Lubrication  Forced lubrication with trochoid pump
Air Cleaner  Dry replaceable cartridge with safety element
capacities
Cooling System 1.3 gal
Engine Oil with Filter 0.8 gal
Fuel Tank 9 gal
Hydraulic Reservoir 11 gal
Hydraulic System 11.9 gal
dimensions
Angle of Departure  28°
Carry Position  7.5 in
Dump Angle @Maximum Height  52°
Dump Height with Standard Bucket  48 in
Dump Reach @Maximum Height  19.4 in
Ground Clearance  6.5 in
Ground Clearance (Under Platform)  11.5 in
Height to Bucket Hinge Pin  76.3 in
Height  54.9 in
Length without Attachment  75.7 in
Length with Standard Bucket  101.7 in
Operating Height  89.4 in
Rollback @Carry Position  40°
Rollback Fully Raised at Maximum Height  40°
Ground Contact Length  41.5 in
Turning Radius with Standard 49″ Bucket  64 in
Machine Width  40.9 in
Wheel Tread (over tracks)  32 in
Width with Standard 49″ Bucket  49.2 in
hydraulics
Pump Type  Drive pump Type: Two closed circuit axial piston pumps. Auxiliary Pump Type: Gear pump
Main Control Valve  2-Spool, open center series parallel configuration
Auxiliary Control Valve  2-Spool, open center series parallel configuration
Auxiliary Flow 11.5 GPM
Hydraulic Filter  Replaceable 10-micron filtration
Hose Quick Couplers  2 Sets of Quick Couplers:  Set 1 -2 quick couplers to drive a momentary attachment with cylinder(s). Set 2 – 3 quick couplers to drive constant hydraulic flow attachments, with or without case drain or hydraulic return.
System Relief  Auxiliary pump relief: 2900 psi (200 bar) Ground drive pump relief: 3045 psi (210 bar)
literature
Name Link
Brochure Download
performance
Rated Operating Capacity (ROC*)  1300 lbs
Max. Travel Speed  3.5 mph (with high torque drive motors)
Machine Weight with Bucket  3323 lbs
Extra Fields
ProductSerialNumber
LABE0511292
drive system
Main Drive  Right Hydraulic Motor drives right side track Left Hydraulic Motor drives left side track
Transmission  Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks  8” inch wide
features & benefits

Self-Leveling Boom

Our self-leveling boom provides ease of use as well as added safety in your every day workload.

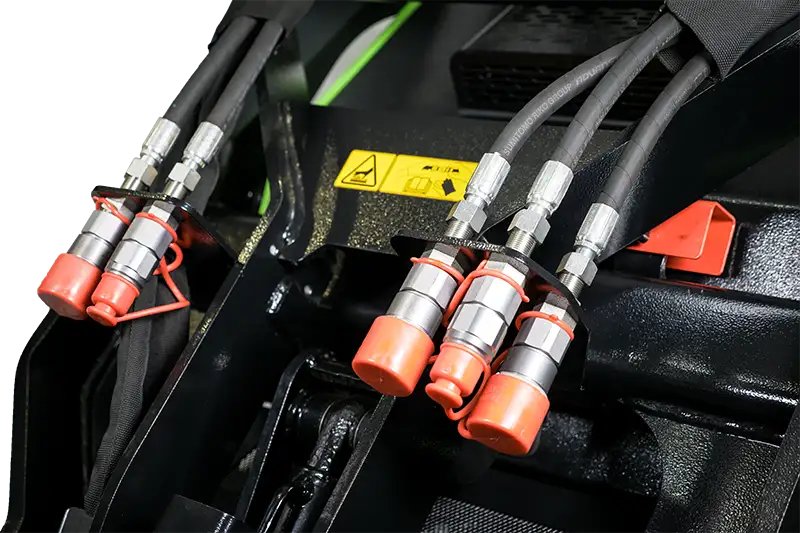

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMAuxillary Hydraulic Hookups

With two sets of quick couplers, you have your choice between running attachments with either cylinder drives or hydraulic flow returns. Truly a a do-it-all mini track loader!

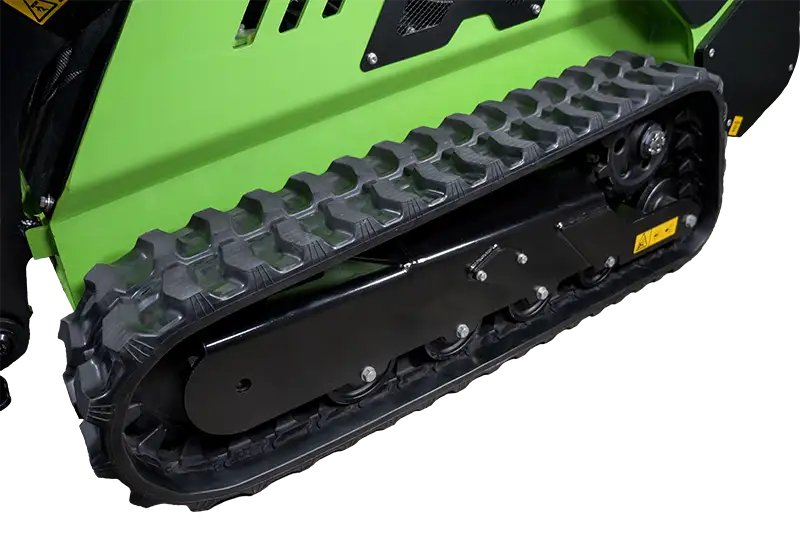

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMMinimal Ground Disturbance Tracks

Our 8 inch wide rubber tracks provide the perfect drive system for close quarter, tight area work as they cause minimal ground disturbance on all terrains.

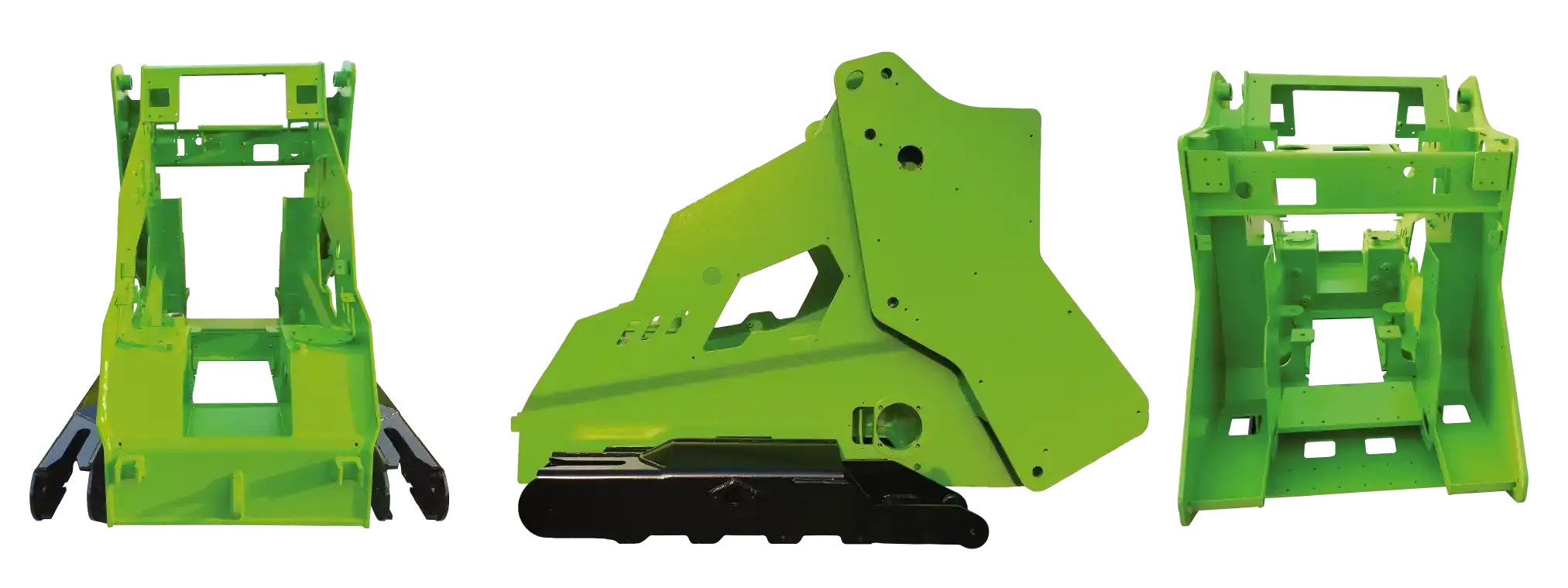

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMHeavy Duty, All-Welded Steel Frame

Viper Loaders are built to last from the ground up, using up to 1/2″ high-grade steel for frame construction.

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMNarrow Footprint

Viper Loaders get in all the tight places with a narrow 41″ width, but carry bigger loads with a standard 49″ bucket.

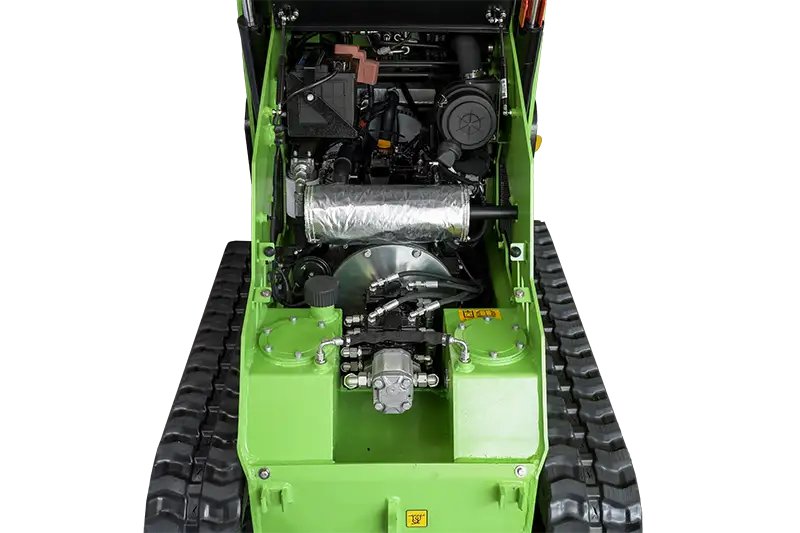

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMEase of Access

Our unique chassis design provides uninhibited access to all engine and hydraulic service areas, making maintenance and repairs quick and easy.

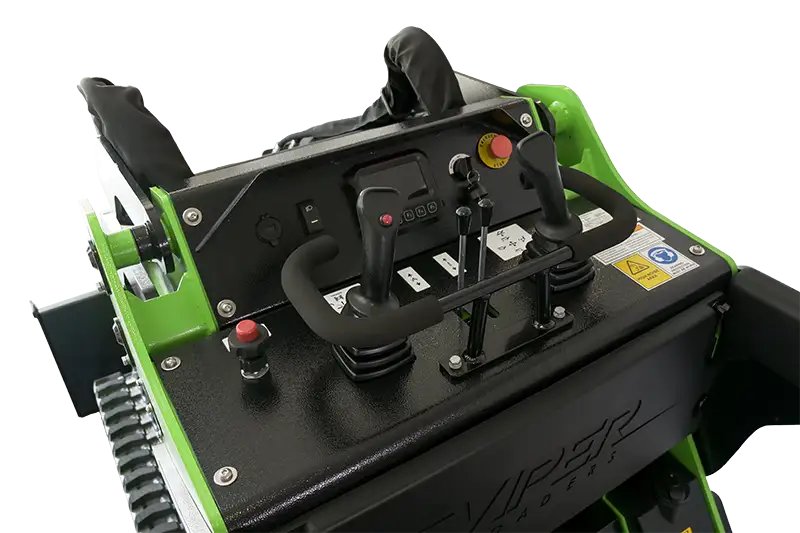

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMIntuitive Joystick Controls

The Viper V1300X handling and maneuverability is made effortless with our ergonomic and intuitive joystick controls. Whether you’re a seasoned operator or using for the first time-Viper Loaders are designed for ease-of-use and smooth & safe operation.

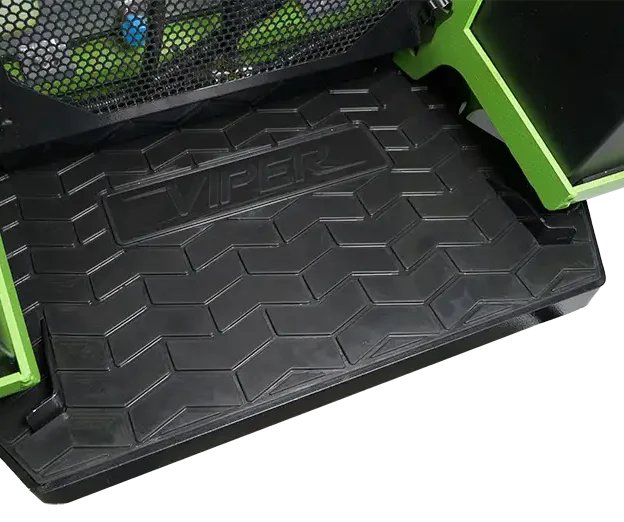

VIPER LOADER YANMAR DIESEL 25HP SELF LEVEL BOOMOperator Comfort

Tackling a full day of projects is made possible by our rubber bushing-mounted operator platform. The suspension-equipped pad helps lessen physical fatigue for more enjoyable operation. We’ve also added thick front and side bumpers that add to your safety and comfort during operation.
